Description

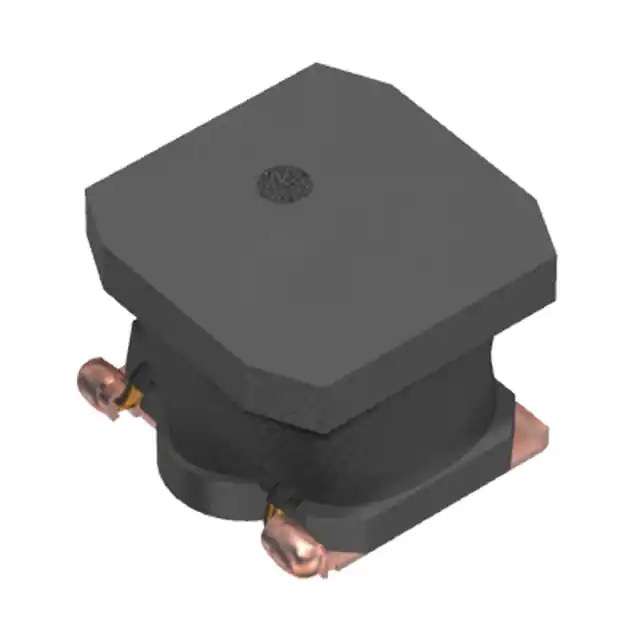

FIXED IND 47UH 1.3A 299MOHM SMD
Detailed Description
| Mfr Part # | VLS6045EX-470M-CA |
| Mfr | TDK Corporation |
| Description | FIXED IND 47UH 1.3A 299MOHM SMD |
| Stock | 2,993 |
| Price | 0.58 |
| @ qty | 0 |
| Min Qty | 1 |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Series | VLS-EX |
| Part Status | Not For New Designs |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.3 A |
| Current - Saturation (Isat) | 1.8A |
| DC Resistance (DCR) | 299mOhm Max |
| Q @ Freq | - |
| Inductance Frequency - Test | 100 kHz |
| Package / Case | Nonstandard |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
VLS6045EX-CA type FEATURES
Magnetic shield type wound inductor for power circuits.
High magnetic shield construction achieved by a ferrite magnetic material and compatible with high-density mounting. Larger current and lower Rdc were achieved by optimizing the ferrite core figure.
Operating temperature range: –40 to +105°C (including self-temperature rise)
APPLICATION Car navigation, car stereo and car accessories only
Not available for use related to driving, curving, stopping, and the other safety
Download
