Description

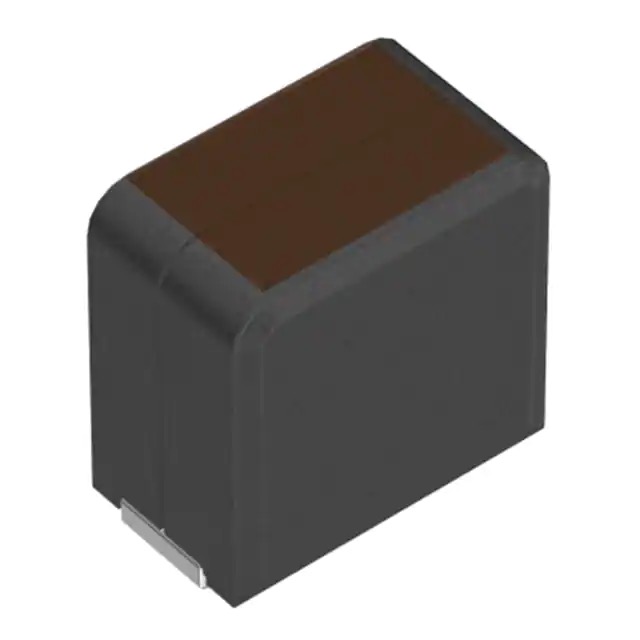

FIXED IND 180NH 65A 0.2 MOHM SMD
Detailed Description
| Mfr Part # | VLBU805080T-R18L |
| Mfr | TDK Corporation |
| Description | FIXED IND 180NH 65A 0.2 MOHM SMD |
| Stock | 913 |
| Price | 2.55 |
| @ qty | 0 |
| Min Qty | 1 |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Series | VLBU |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 180 nH |
| Tolerance | ±15% |
| Current Rating (Amps) | 65 A |
| Current - Saturation (Isat) | 34A |
| DC Resistance (DCR) | 0.2mOhm |
| Q @ Freq | - |
| Inductance Frequency - Test | 100 kHz |
| Package / Case | Nonstandard |
| Size / Dimension | 0.315" L x 0.197" W (8.00mm x 5.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
VLBU805080 type FEATURES
Large current and lower DCR were achieved by the connecting wire-less structure.
This is a narrow inductor for multiphase applications.
Operating temperature range: –40 to +125°C (including self-temperature rise)
APPLICATION Servers, BTS, VRM, others
Download
