| Quantity: |
|---|
Description
FIXED IND 15UH 8.6A 33.93MOHM SM
Detailed Description

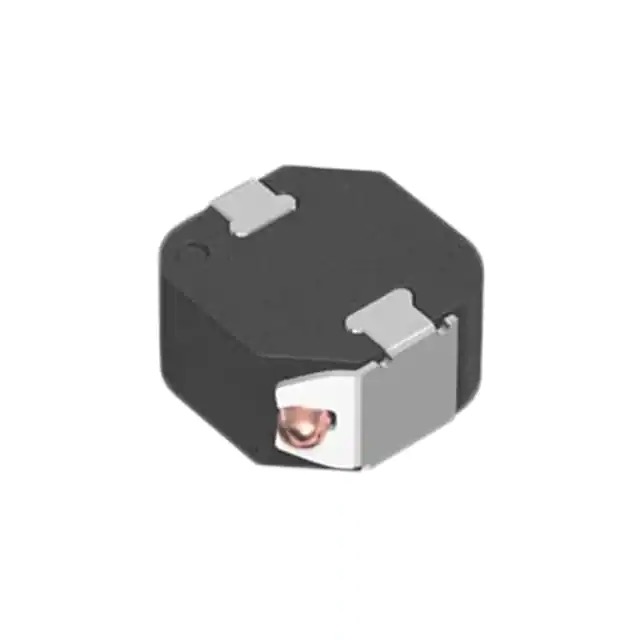

| Mfr Part # | SPM10054T-150M-HZ |
| Mfr | TDK Corporation |
| Description | FIXED IND 15UH 8.6A 33.93MOHM SM |
| Stock | 796 |
| Price | 2.75 |
| @ qty | 0 |
| Min Qty | 1 |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Series | SPM-HZ |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Metal |
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 8.6 A |
| Current - Saturation (Isat) | 3.6A |
| DC Resistance (DCR) | 33.93mOhm Max |
| Q @ Freq | - |
| Inductance Frequency - Test | 100 kHz |
| Package / Case | Nonstandard |
| Size / Dimension | 0.421" L x 0.394" W (10.70mm x 10.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
SPM10054-HZ type APPLICATION
Automotive-related equipment (Car navigation, car audio)
