Wirewound Inductor 10UH Inductance VLS3012CX-100M-1 TDK
Home » Products » Inductors » Fixed Inductors » Wirewound Inductor 10UH Inductance VLS3012CX-100M-1 TDK

Product Category

Wirewound Inductor 10UH Inductance VLS3012CX-100M-1 TDK

  • VLS3012CX-100M-1

  • TDK

Availability:
Quantity:

Description

FIXED IND 10UH 1.25A 324MOHM SMD


Detailed Description

Mfr Part # VLS3012CX-100M-1
Mfr TDK Corporation
Description FIXED IND 10UH 1.25A 324MOHM SMD
Stock 1,935
Price 0.42
@ qty 0
Min Qty 1
 Package Tape & Reel (TR),Cut Tape (CT)
Series VLS-CX-1
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 1.25 A
Current - Saturation (Isat) 1A
DC Resistance (DCR) 324mOhm Max
Q @ Freq -
Inductance Frequency - Test 1 MHz
Package / Case Nonstandard

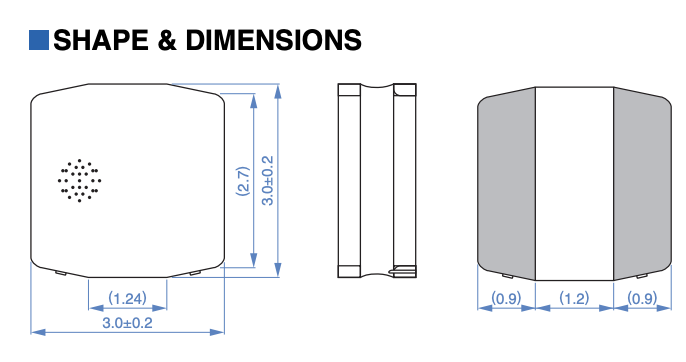

Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.047" (1.20mm)


VLS3012CX-1 type APPLICATION:

Smart phones, tablet terminals, HDDs, SSDs, DVCs, DSCs, mobile display panels, portable game devices, compact power supply modules, other

FEATURES:

Magnetic shield type wound inductor for power circuits using a ferrite magnetic material.

High magnetic shield construction and compatible with high-density mounting.

Larger current and lower Rdc were achieved by optimizing the ferrite core figure.


The VLS3012CX-1 chip inductor is a high-quality electronic component designed for use in a wide range of devices, including smart phones, tablet terminals, HDDs, SSDs, DVCs, DSCs, mobile display panels, portable game devices, compact power supply modules, and more.

VLS3012CX-1 This chip inductor offers exceptional performance and reliability, making it an ideal choice for demanding applications in the electronics industry. With its compact size and advanced design, the VLS3012CX-1 chip inductor is an excellent solution for engineers and designers looking for a reliable and efficient component to power their next-generation electronic devices.

Whether you are working on a new product development project or looking to upgrade your existing designs, the VLS4012CX chip inductor is the perfect choice for your needs. So why wait? Order your VLS3012CX-1 chip inductor today and experience the power and performance that only this high-quality electronic component can provide!


Download

vls3012cx-1_en.pdf
