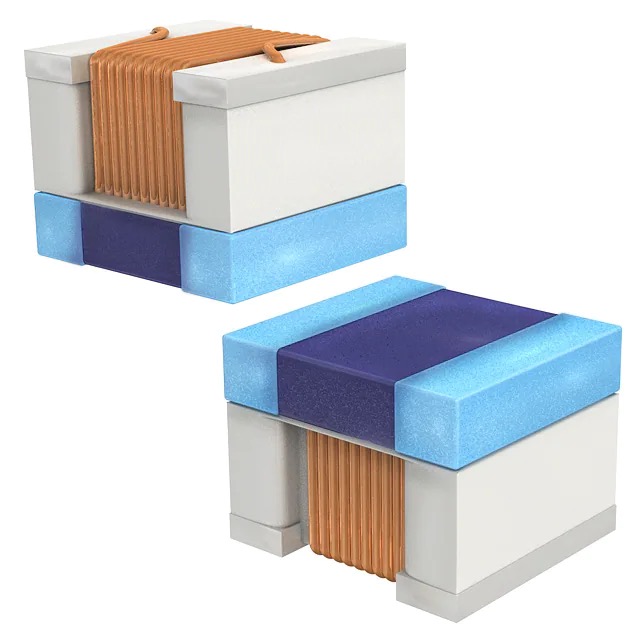

Unshielded Wirewound Inductor 1 A supplier LQW2UAS27NG0CL Murata

  • LQW2UAS27NG0CL
  • Murata Electronics
Availability:
Quantity:
Inquire Add to Basket

Description

FIXED IND 27NH 1A 130 MOHM SMD


Detailed Description


Mfr Part # LQW2UAS27NG0CL
Mfr Murata Electronics
Description FIXED IND 27NH 1A 130 MOHM SMD
Stock 1,616
Price 0.26
@ qty 0
Min Qty 1
 Package Tape & Reel (TR),Cut Tape (CT),
Series LQW2
Part Status Active
Type Wirewound
Material - Core Non-Magnetic
Inductance 27 nH
Tolerance ±2%
Current Rating (Amps) 1 A
Current - Saturation (Isat) -
DC Resistance (DCR) 130mOhm Max
Q @ Freq 55 @ 350MHz
Frequency - Self Resonant 1.6GHz
Size / Dimension 0.103" L x 0.096" W (2.62mm x 2.45mm)
Height - Seated (Max) 0.080" (2.03mm)


LQW2UAS Scope

This reference specification applies to chip coils (chip inductors) LQW2UAS_0C series for general electronic equipment.


Measuring conditions:

Measurement signal level: Approx. 0 dBm

Measurement terminal distance: 1.5 mm

Electrical length: 10.0 mm

Weight: Approx. 1 N to 3 N

Measuring fixture: Keysight 16197A


Download

JELF243A-0173.pdf


Previous:
Next:
27 nH Unshielded Wirewound Inductor 1 A 130mOhm Max 1008 (2520 Metric) LQW2UAS series chip inductor LQW2UAS_0C series for general electronic equipment Non-Magnetic Material Core Wirewound type chokes
