Description

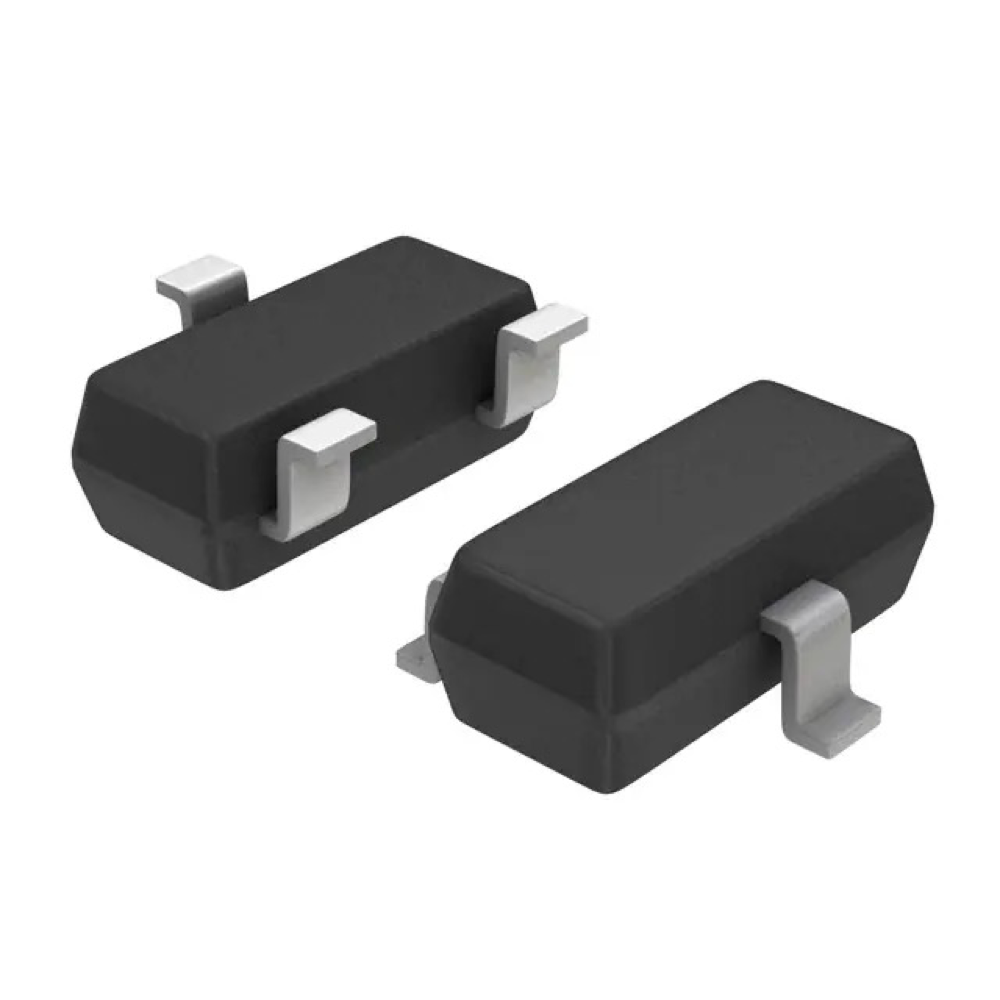

DIODE GP 100V 200MA SOT23-3
Features
• S Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC−Q101 Qualified and
PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
Detailed Description
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 200mA |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 6 ns |
| Current - Reverse Leakage @ Vr | 1 µA @ 100 V |
| Capacitance @ Vr, F | 2pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | BAS16 |
Download
https://www.onsemi.com/pdf/datasheet/bas16lt1-d.pdf
