Description

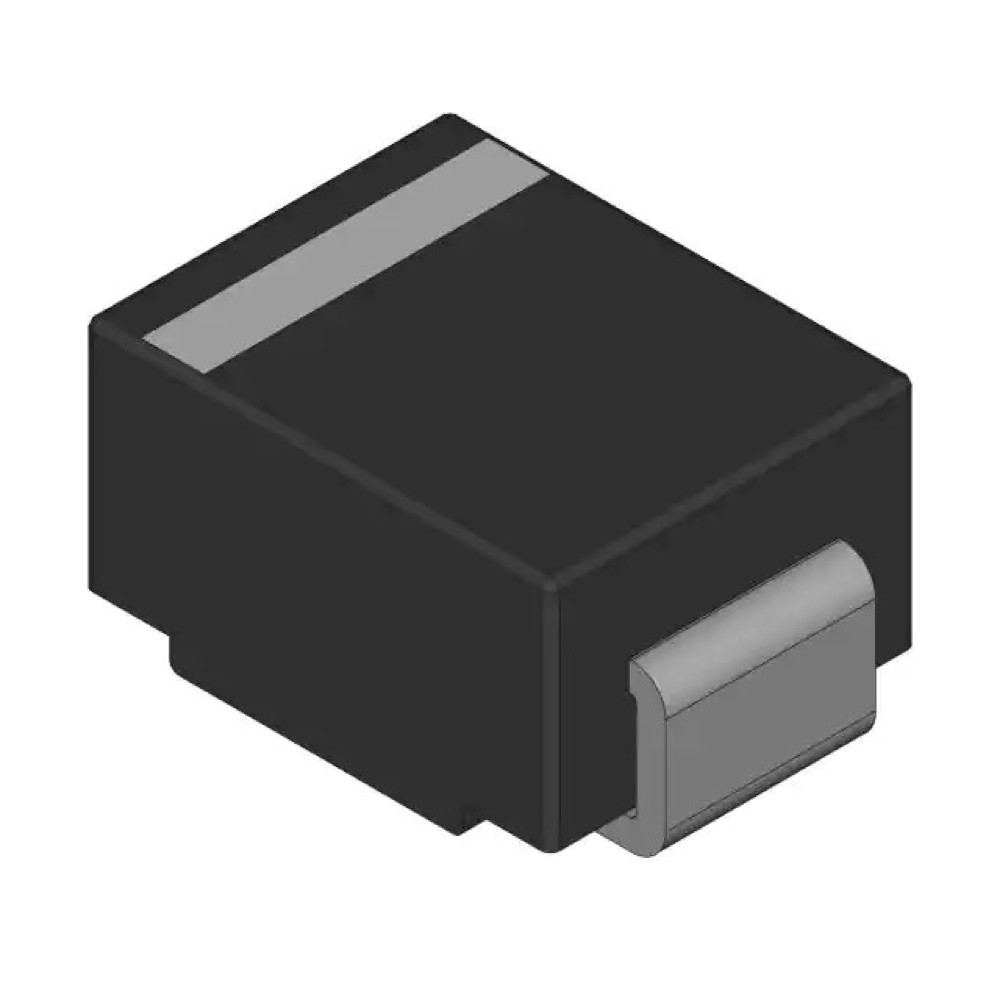

DIODE GEN PURP 400V 2A SMB
Features
• Small Compact Surface Mountable Package with J−Bend Leads
• Rectangular Package for Automated Handling
• High Temperature Glass Passivated Junction
• Low Forward Voltage Drop (0.95 Volts Max @ 2.0 A, TJ = 150°C)
• NRVUS and SURS8 Prefixes for Automotive and Other Applications
Requiring Unique Site and Control Change Requirements;
AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
Detailed Description
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Current - Average Rectified (Io) | 2A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 2 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 65 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 400 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Base Product Number | MURS240 |
Download
https://www.onsemi.com/download/data-sheet/pdf/murs230t3-d.pdf
