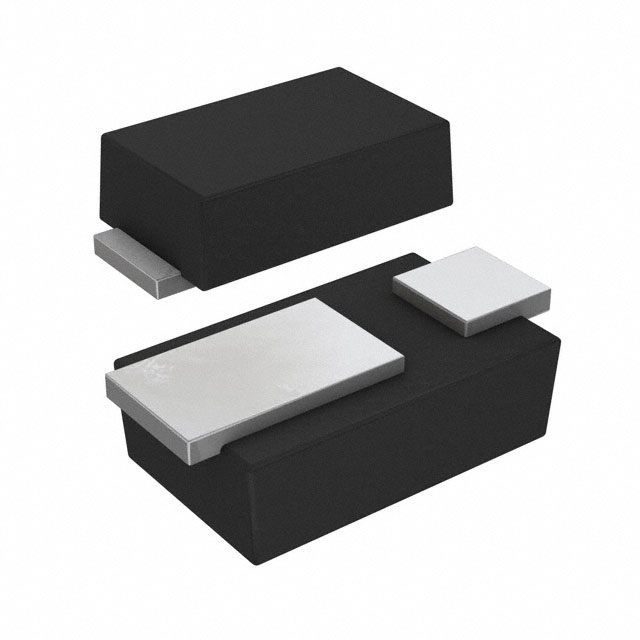

DIODE SCHOTTKY 30V 1A SOD323HE
Features
• Very Low Profile − Typical Height of 0.68 mm
• Low Power Loss, High Efficiency
• Moisture Sensitivity Level 1 per J−STD−020
• UL Flammability 94V−0 Classification
• RoHS Compliant / Green Molding Compound
• NRVB Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q101
Qualified and PPAP Capable
Detailed Description
| Mfr Part # | SS13HE |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 5.6 ns |
| Current - Reverse Leakage @ Vr | 50 µA @ 30 V |
| Capacitance @ Vr, F | 55pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, Flat Lead |
| Supplier Device Package | SOD-323HE |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | SS13 |
