Description

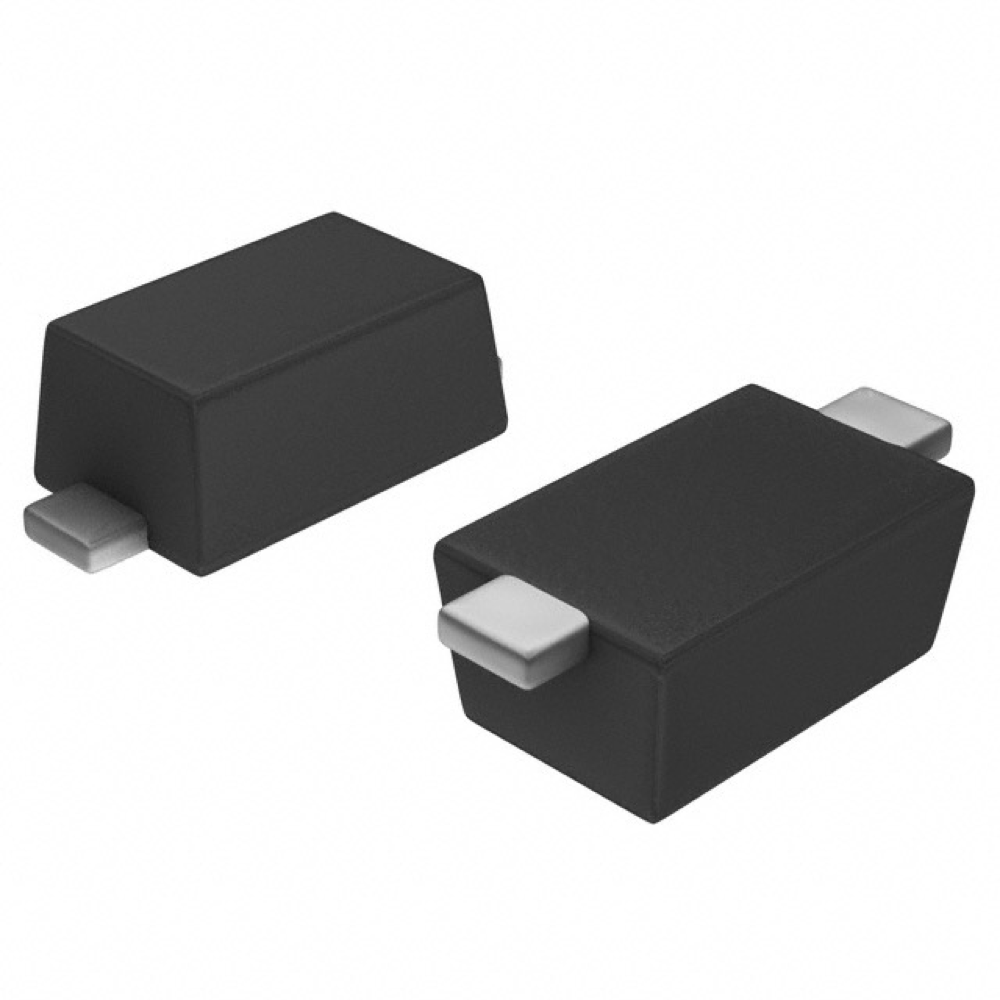

DIODE GP 600V 800MA SOD123FA
Features
• Glass Passivated Chip Junction
• Fast Switching for High Efficiency
• High Surge Capacity
• Low Forward Voltage: 1.3 V Maximum
• UL Flammability 94V−0 Classification
• MSL 1 per J−STD−020
• RoHS Compliant / Green Molding Compound
• Industrial Device Qualified per AEC−Q101 Standards
• NRVHP Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q101
Qualified and PPAP Capable
Detailed Description
| Mfr Part # | RS1JFA |
| Mfr | onsemi |
| Series | Automotive, AEC-Q101 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) | 800mA |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 800 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 250 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V |
| Capacitance @ Vr, F | 10pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123W |
| Supplier Device Package | SOD-123FA |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | RS1J |
Download
https://www.onsemi.com/pdf/datasheet/rs1afa-d.pdf
