Description

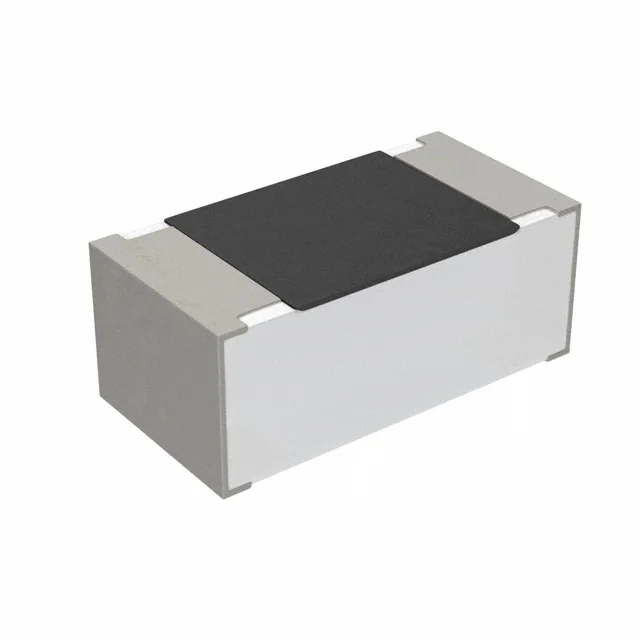

RES 100 OHM 1% 1/8W 0805
Detailed Description
| Mfr Part # | WR08X1000FTL |
| Mfr | Walsin Technology Corporation |
| Description | RES 100 OHM 1% 1/8W 0805 |
| Stock | 2,378 |
| Price | 0.1 |
| @ qty | 0 |
| Min Qty | 1/REEL |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Series | WR |
| Part Status | Active |
| Resistance | 100 Ohms |
| Tolerance | ±1% |
| Power (Watts) | 0.125W, 1/8W |
| Composition | Thick Film |
| Features | - |
| Temperature Coefficient | ±100ppm/°C |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
1. This is the maximum voltage that may be continuously supplied to the resistor element, see “IEC publication 60115-8”
2. Max. Operation Voltage : So called RCWV (Rated Continuous Working Voltage) is determined by RCWV RatedPowerResistance Value or Max. RCWV listed above, whichever is lower.
3. The resistance of Jumper is defined <0.05.
Download
