Description

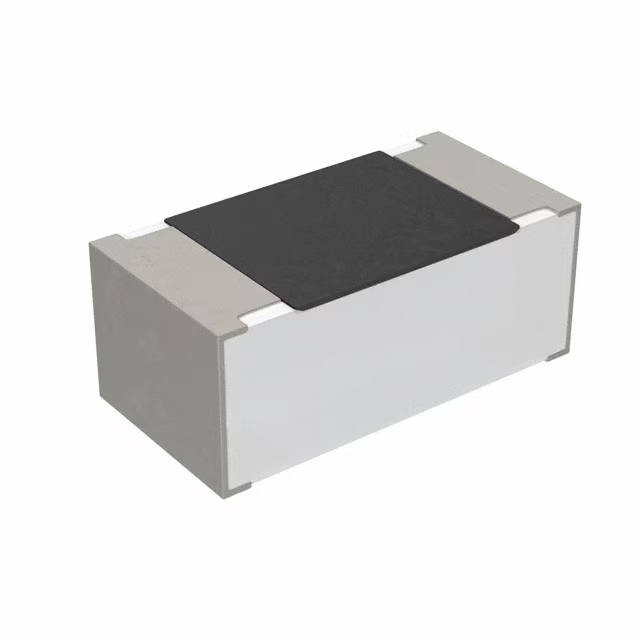

RES 680 OHM 5% 1/16W 0402
Detailed Description
| Mfr Part # | WR04X681 JTL |
| Mfr | Walsin Technology Corporation |
| Description | RES 680 OHM 5% 1/16W 0402 |
| Stock | 9,440 |
| Price | 0.1 |
| @ qty | 0 |
| Min Qty | 1/REEL |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Series | WR |
| Part Status | Active |
| Resistance | 680 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 0.063W, 1/16W |
| Composition | Thick Film |
| Features | - |
| Temperature Coefficient | ±100ppm/°C |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.016" (0.40mm) |
This is the maximum voltage that may be continuously supplied to the resistor element, see “IEC publication 60115-8”
Max. Operation Voltage : So called RCWV (Rated Continuous Working Voltage) is determined by RCWV RatedPowerResistance Value or Max. RCWV listed above, whichever is lower.
The resistance of Jumper is defined <0.05.
