Description

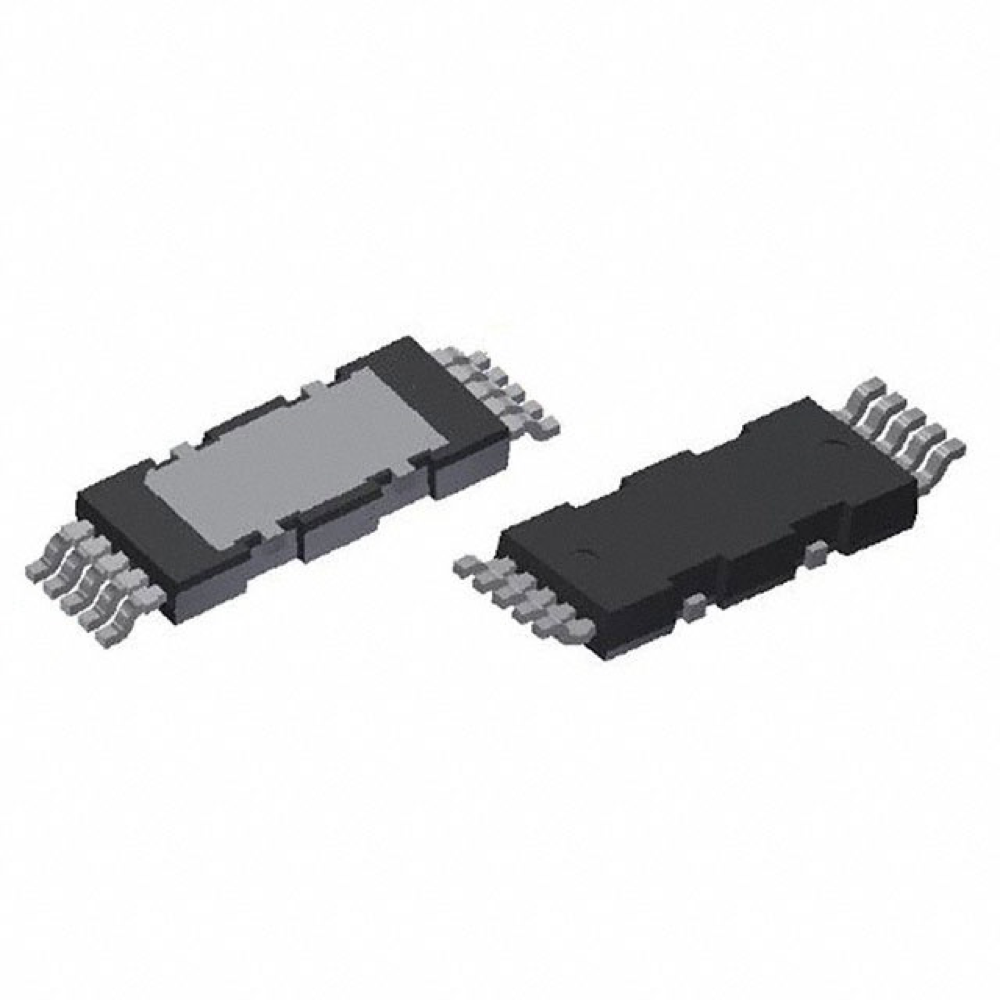

DIODE SIL CARB 650V 34A HDSOP-10
Features
› No reverse-recovery charge
› Purely capacitive switching
› High operating temperature
(Tj, max =175°C)
Benefits
› System efficiency improvement
compared to Si-based diodes
› Reduced cooling requirements
› Enabling higher frequency/increased
power density
› Higher system reliability due to lower
operating temperature
› Reduced EMI
Detailed Description
| Mfr | Infineon Technologies |
| Series | CoolSiC™+ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Current - Average Rectified (Io) | 34A |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 40 µA @ 420 V |
| Capacitance @ Vr, F | 594pF @ 1V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | 10-PowerSOP Module |
| Supplier Device Package | PG-HDSOP-10-1 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Base Product Number | IDDD12 |
Download
https://www.infineon.com/dgdl/Infineon-Selection_guide_CoolSiC_Silicon_Carbide_Schottky_diodes-SG-v05_00-EN.pdf?fileId=db3a3043399628450139b0701a1d21d2
