| Quantity: |
|---|
Description

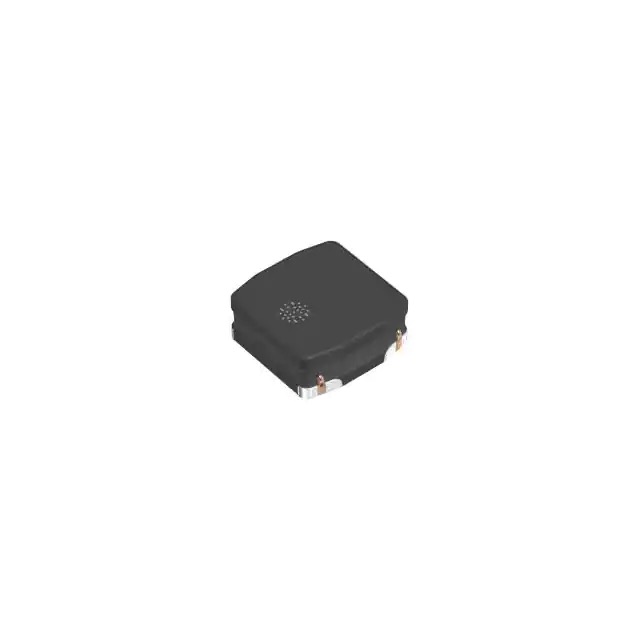

FIXED IND 15UH SMD
Detailed Description
| Mfr Part # | VLS3012CX-150M-1 |
| Mfr | TDK Corporation |
| Description | FIXED IND 15UH SMD |
| Stock | 1,944 |
| Price | 0.42 |
| @ qty | 0 |
| Min Qty | 1 |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Series | VLS-CX-1 |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | - |
| Current - Saturation (Isat) | - |
| DC Resistance (DCR) | - |
| Q @ Freq | - |
| Inductance Frequency - Test | 1 MHz |
| Package / Case | Nonstandard |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
Magnetic shield type wound inductor for power circuits using a ferrite magnetic material.
High magnetic shield construction and compatible with high-density mounting.
Larger current and lower Rdc were achieved by optimizing the ferrite core figure
