Shielded Inductor LQH44PN100MP0L Murata
Home » Products » Inductors » Fixed Inductors » Shielded Inductor LQH44PN100MP0L Murata

Product Category

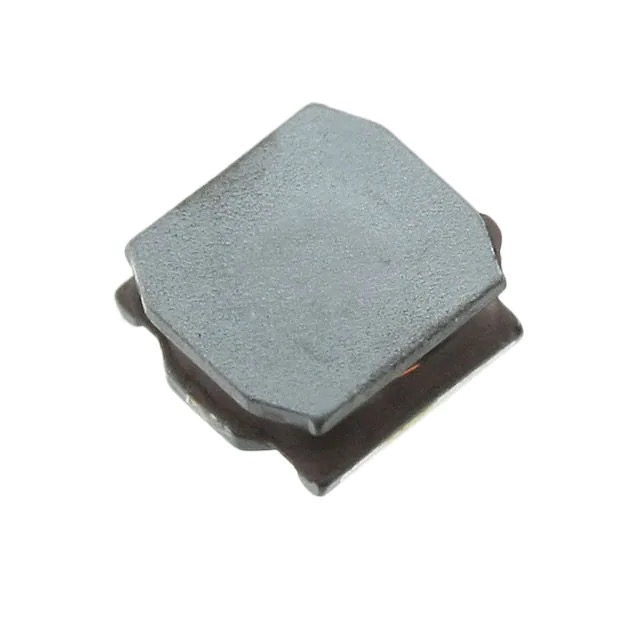

Shielded Inductor LQH44PN100MP0L Murata

  • LQH44PN100MP0L

  • Murata Electronics

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Description

FIXED IND 10UH 1.17A 192MOHM SMD


Detailed Description

Mfr Part # LQH44PN100MP0L
Mfr Murata Electronics
Description FIXED IND 10UH 1.17A 192MOHM SMD
Stock 28,030
Price 0.47
@ qty 0
Min Qty 1
 Package Tape & Reel (TR),Cut Tape (CT)
Series LQH44
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 1.17 A
Current - Saturation (Isat) 1.15A
DC Resistance (DCR) 192mOhm Max
Q @ Freq -
Frequency - Self Resonant 25MHz
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.071" (1.80mm)


LQH44PN series:

A high Q value is achieved when the PCB electrode land pattern is designed so that it does not project beyond the chip inductor (chip coil) electrode.

Application:Consumer equipment,Medical equipment [GHTF A/B/C] except for implant & operation & auto-dispenser equipment,Industrial equipment except for transportation & facility & energy equipment

Introducing the LQH44PN series chip coil - a high-quality electronic component designed for use in a wide range of consumer and industrial applications. With its advanced design and superior performance, this chip coil is the ideal choice for automotive infotainment/comfort equipment, automotive powertrain/safety equipment, and medical equipment.

Crafted with precision and care, the LQH44PN series chip coil offers exceptional reliability and durability, ensuring that your equipment operates smoothly and efficiently at all times. Its compact size and lightweight construction make it easy to install and integrate into your existing systems, while its advanced features and capabilities provide unparalleled performance and functionality.

Whether you are working on a new project or upgrading your existing equipment, the LQH44PN series chip coil is the perfect choice for your needs. So why wait? Invest in the LQH44PN series chip coil today and experience the ultimate in performance and quality.


Download

LQx_Land-Patterns.pdf
