Description
DIODE SCHOTTKY 30V 200MA SOD523
The "SBAT54XV2T1G" is a specific part number for a dual-series Schottky diode manufactured by ON Semiconductor. Here are the key specifications for the SBAT54XV2T1G diode:
Type: Dual-Series Schottky Diode (Two diodes in series)
Maximum Voltage Rating: 30V (per diode, total 60V)
Maximum Current Rating: 200mA (or 0.2A) per diode
Package: SOT-563 (also known as SC-89-6)
Features and Applications:
The SBAT54XV2T1G diode is designed for various electronic circuits, particularly for low voltage rectification and switching applications. It offers the following features:
Low Forward Voltage Drop: Schottky diodes have a lower forward voltage drop compared to standard silicon diodes, reducing power losses and improving efficiency.
Fast Switching Speed: Schottky diodes have a fast switching speed, making them suitable for applications where quick response times are required.
Dual-Series Configuration: The package contains two Schottky diodes in series, making it useful for applications that require higher voltage ratings or precision rectification.
Small Package: The SOT-563 package is a small surface-mount package, suitable for space-constrained applications and compatible with automated assembly processes.
Applications for the SBAT54XV2T1G diode include but are not limited to:
Rectification in low voltage power supplies and voltage regulators.
High-speed switching in digital and analog circuits.
Reverse polarity protection and voltage clamping circuits.
Signal detection and demodulation in communication circuits.
Features
• Extremely Fast Switching Speed
• Low Forward Voltage − 0.35 V (Typ) @ IF = 10 mA
• S Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC−Q101 Qualified and
PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant

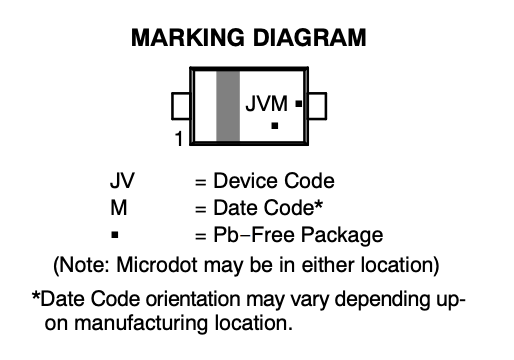

Detailed Description
| Mfr Part # | SBAT54XV2T1G |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 200mA |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V |
| Capacitance @ Vr, F | 10pF @ 1V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-79, SOD-523 |
| Supplier Device Package | SOD-523 |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Base Product Number | SBAT54 |
Download
https://www.onsemi.com/pdf/datasheet/bat54xv2t1-d.pdf
