Description

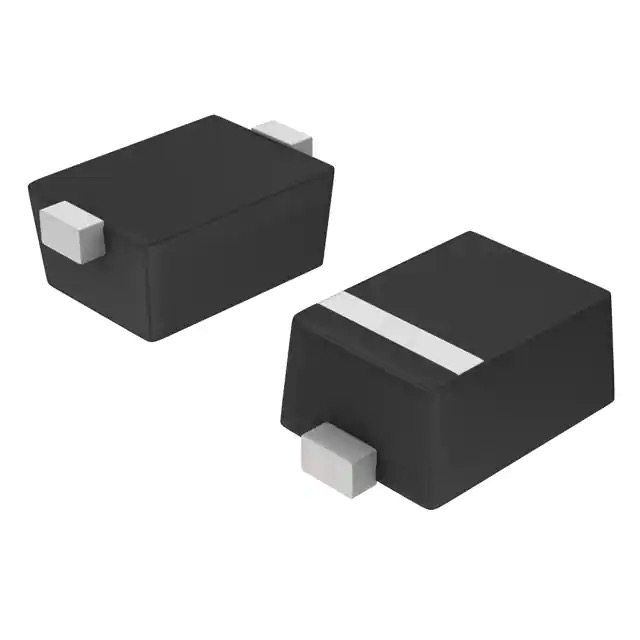

DIODE SCHOTTKY 20V 500MA SOD923
Features
• Very Low Forward Voltage Drop − 350 mV @ 100 mA
• Low Reverse Current − 2.0 A @ 10 V
• Continuous Forward Current − 500 mA
• Power Dissipation with Minimum Trace − 190 mW
• Very High Switching Speed − 4.0 ns @ 10 mA
• Low Capacitance − 12 pF @ 1.0 V
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
Detailed Description
| Mfr Part # | NSR0620P2T5G |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Current - Average Rectified (Io) | 500mA |
| Voltage - Forward (Vf) (Max) @ If | 520 mV @ 500 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 4 ns |
| Current - Reverse Leakage @ Vr | 9 µA @ 20 V |
| Capacitance @ Vr, F | 12pF @ 1V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SOD-923 |
| Supplier Device Package | SOD-923 |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Base Product Number | NSR0620 |
Download
https://www.onsemi.com/pdf/datasheet/nsr0620p2-d.pdf
