Description

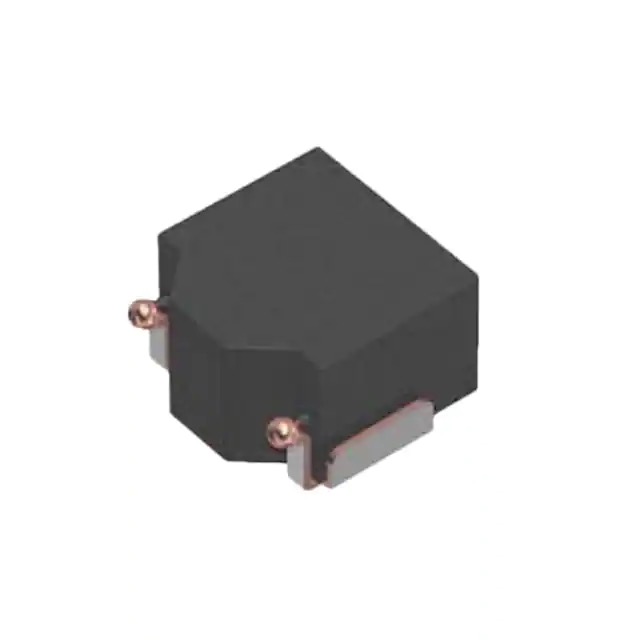

FIXED IND 3.3UH 1.9A 218.5 MOHM
Detailed Description
| Mfr Part # | SPM3010T-3R3M-LR |
| Mfr | TDK Corporation |
| Description | FIXED IND 3.3UH 1.9A 218.5 MOHM |
| Stock | 7,995 |
| Price | 1.41 |
| @ qty | 0 |
| Min Qty | 1 |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Series | SPM-LR |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Metal |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.9 A |
| Current - Saturation (Isat) | 2.2A |
| DC Resistance (DCR) | 218.5mOhm Max |
| Q @ Freq | - |
| Inductance Frequency - Test | 100 kHz |
| Package / Case | Nonstandard |
| Size / Dimension | 0.126" L x 0.118" W (3.20mm x 3.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
SPM3010-LR type FEATURES
*Magnetic shield type wound inductor for power circuits using a metallic magnetic material.
*Low-profile product. Compared to ferrite wound type inductors, it is possible to achieve large current, low Rdc, and compactness.
*Low inductance variance in high-temperature environments with good DC superimposition characteristics.
*Metallic magnetic material is used, and the structure has an integrated molded coil, so hum noise is lower than with core adhesive coils.
*Operating temperature range: –40 to +125 °C (including self-temperature rise)
APPLICATION
Tablet terminals, note PCs, HDDs, servers, VRMs, compact power supply modules, other Application guides: Smart phones/tablets
