| Quantity: |
|---|
Description

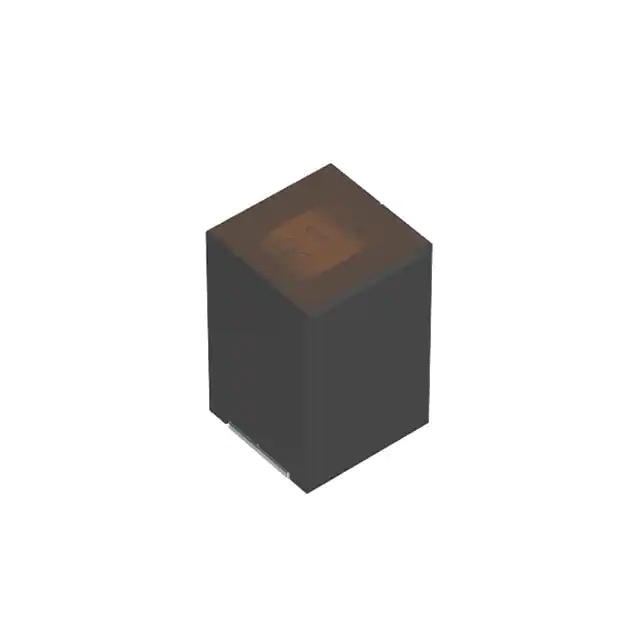

FIXED IND 200NH 70A 0.18MOHM SMD
Detailed Description
| Mfr Part # | VLBU6565100T-R20L |
| Mfr | TDK Corporation |
| Description | FIXED IND 200NH 70A 0.18MOHM SMD |
| Stock | 732 |
| Price | 2.46 |
| @ qty | 0 |
| Min Qty | 1 |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Series | VLBU |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 200 nH |
| Tolerance | ±15% |
| Current Rating (Amps) | 70 A |
| Current - Saturation (Isat) | 37A |
| DC Resistance (DCR) | 0.18mOhm |
| Q @ Freq | - |
| Inductance Frequency - Test | 100 kHz |
| Package / Case | Nonstandard |
| Size / Dimension | 0.256" L x 0.256" W (6.50mm x 6.50mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
VLBU6565100 type FEATURES
*This is a power supply circuit for SMD inductors using high Bs ferrite materials.
*Large current and lower DCR were achieved by the connecting wire-less structure.
*This inductor reduces mounting area. Operating temperature range: –40 to +125°C (including self-temperature rise)
APPLICATION Servers, BTS, VRM, others
Download
