Description

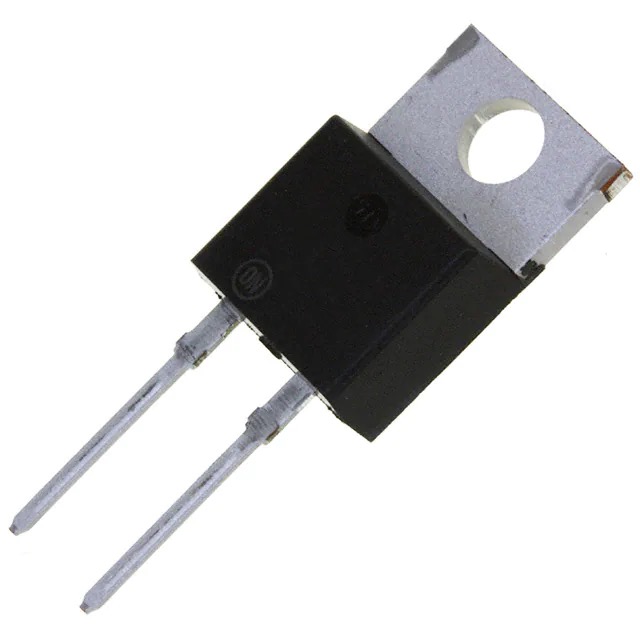

DIODE GEN PURP 600V 15A TO220-2
Features
• Ultrafast 35 and 60 Nanosecond Recovery Time
• 175°C Operating Junction Temperature
• High Voltage Capability to 600 V
• ESD Ratings:
♦ Machine Model = C
♦ Human Body Model = 3B
• Low Forward Drop
• Low Leakage Specified @ 150°C Case Temperature
• Current Derating Specified @ Both Case and Ambient Temperatures
• SUR8 Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q101
Qualified and PPAP Capable
• All Packages are Pb−Free*
Detailed Description
| Mfr Part # | MUR1560G |
| Mfr | onsemi |
| Series | SWITCHMODE™ |
| Package | Tube |
| Product Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) | 15A |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 60 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 |
| Supplier Device Package | TO-220-2 |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Base Product Number | MUR1560 |
Download https://www.onsemi.com/pdf/datasheet/mur1520-d.pdf |
Description
DIODE GEN PURP 600V 15A TO220-2
Features
• Ultrafast 35 and 60 Nanosecond Recovery Time
• 175°C Operating Junction Temperature
• High Voltage Capability to 600 V
• ESD Ratings:
♦ Machine Model = C
♦ Human Body Model = 3B
• Low Forward Drop
• Low Leakage Specified @ 150°C Case Temperature
• Current Derating Specified @ Both Case and Ambient Temperatures
• SUR8 Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q101
Qualified and PPAP Capable
• All Packages are Pb−Free*
Detailed Description
| Mfr Part # | MUR1560G |
| Mfr | onsemi |
| Series | SWITCHMODE™ |
| Package | Tube |
| Product Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) | 15A |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 60 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 |
| Supplier Device Package | TO-220-2 |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Base Product Number | MUR1560 |
Download https://www.onsemi.com/pdf/datasheet/mur1520-d.pdf |
