Description

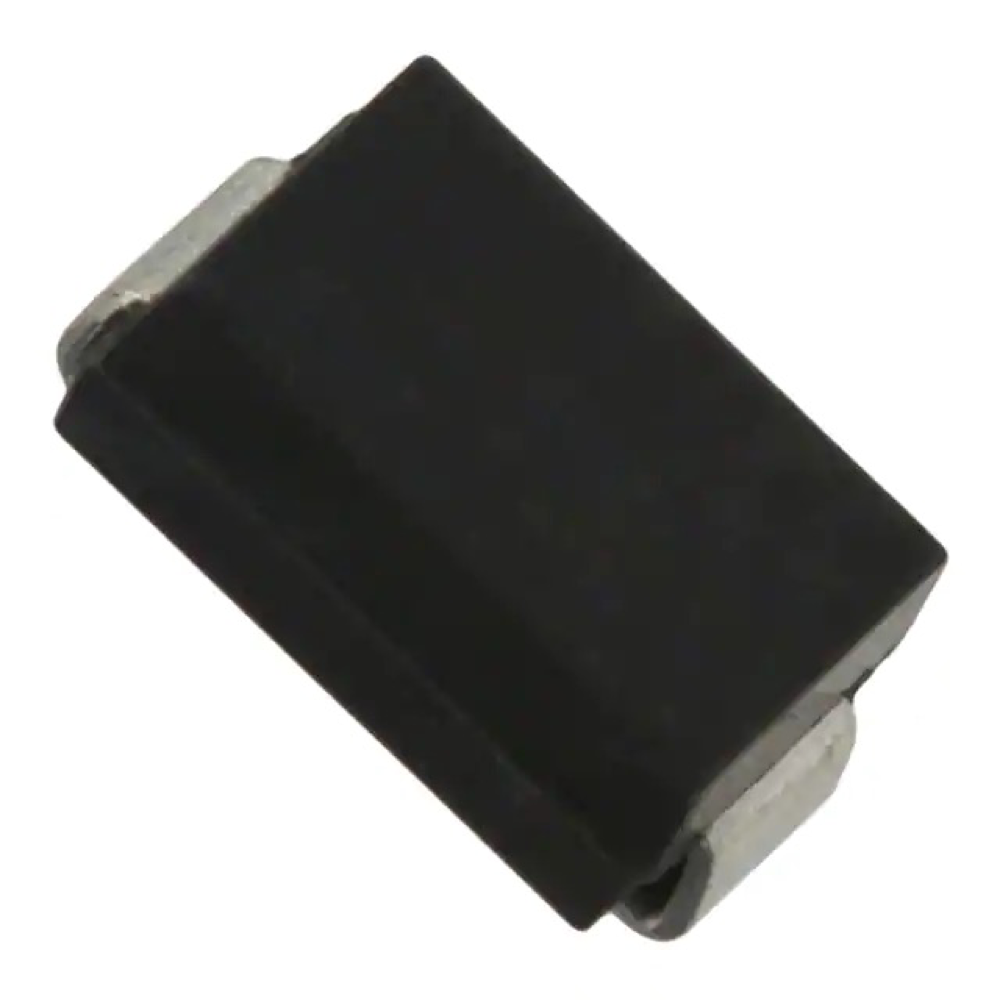

DIODE GEN PURP 50V 1A DO214AC
Features
• Low forward voltage drop.
• High current capability.
• Easy pick and place.
• High surge current capability.
Detailed Description
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 1 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 2 µs |
| Current - Reverse Leakage @ Vr | 5 µA @ 50 V |
| Capacitance @ Vr, F | 15pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Base Product Number | GF1 |
Download
https://rocelec.widen.net/view/pdf/uxqpnlhldz/ONSM-S-A0003589161-1.pdf?t.download=true&u=5oefqw
