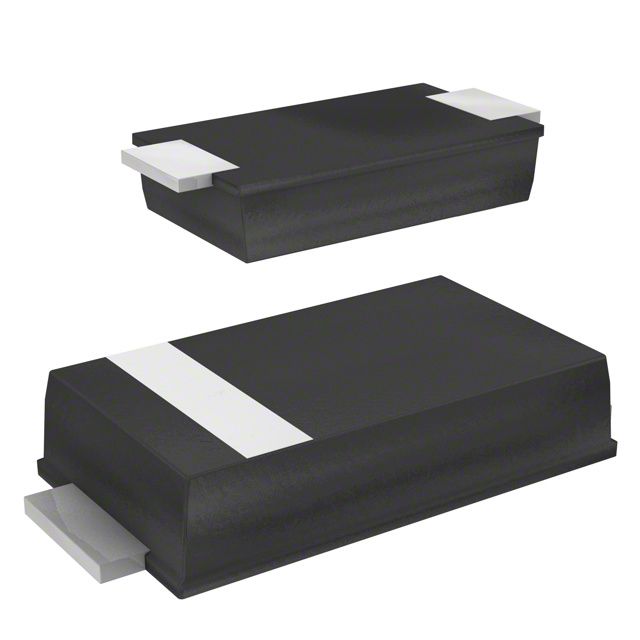

RECTIFIER DIODE ES1DAF
Home » Products » Circuit Protection » Diodes » RECTIFIER DIODE ES1DAF

Product Category

RECTIFIER DIODE ES1DAF

  • ES1DAF

  • onsemi

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Description

DIODE GEN PURP 200V 1A DO214AD


Features

• Fast Switching Speed – Maximum Trr 35 ns

• Ultra Thin Profile − Maximum Height of 1.0 mm

• Glass Passivated Junction

• UL Flammability 94V−0 Classification

• MSL 1

• Green Mold Compound

• These Devices are Pb−Free, Halogen Free Free and are RoHS Compliant


The ES1DAF is a general-purpose diode with specific electrical characteristics. Here are the key specifications for the ES1DAF diode:

  1. Type: Rectifier Diode / General-Purpose Diode

  2. Maximum Voltage Rating: 200V

  3. Maximum Current Rating: 1A (or 1000mA)

  4. Package: DO-214AD (also known as SMA or SMC)

Features and Applications:

The ES1DAF diode is designed for various electronic circuits, including but not limited to:

  1. Rectification: It can be used for converting alternating current (AC) to direct current (DC) in power supplies and voltage rectification circuits.

  2. General-Purpose Applications: As a standard diode, it is suitable for a wide range of general-purpose electronic applications.

  3. Reverse Voltage Protection: It can be used as a reverse polarity protection diode in circuits to prevent damage from reverse voltage or voltage spikes.

The DO-214AD package, also known as SMA (Surface Mount Axial) or SMC (Surface Mount Component), is a surface-mount package that allows for easy and convenient mounting on PCBs.




Detailed Description

Mfr Part #ES1DAF
Mfronsemi
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Product StatusActive
TechnologyStandard
Voltage - DC Reverse (Vr) (Max)200 V
Current - Average Rectified (Io)1A
Voltage - Forward (Vf) (Max) @ If950 mV @ 1 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)34 ns
Current - Reverse Leakage @ Vr1 µA @ 200 V
Capacitance @ Vr, F15pF @ 4V, 1MHz
Mounting TypeSurface Mount
Package / CaseDO-214AD, SMAF
Supplier Device PackageDO-214AD (SMAF)
Operating Temperature - Junction-55°C ~ 150°C
Base Product NumberES1D


Download

https://www.onsemi.com/pdf/datasheet/es1jaf-d.pdf
