Description

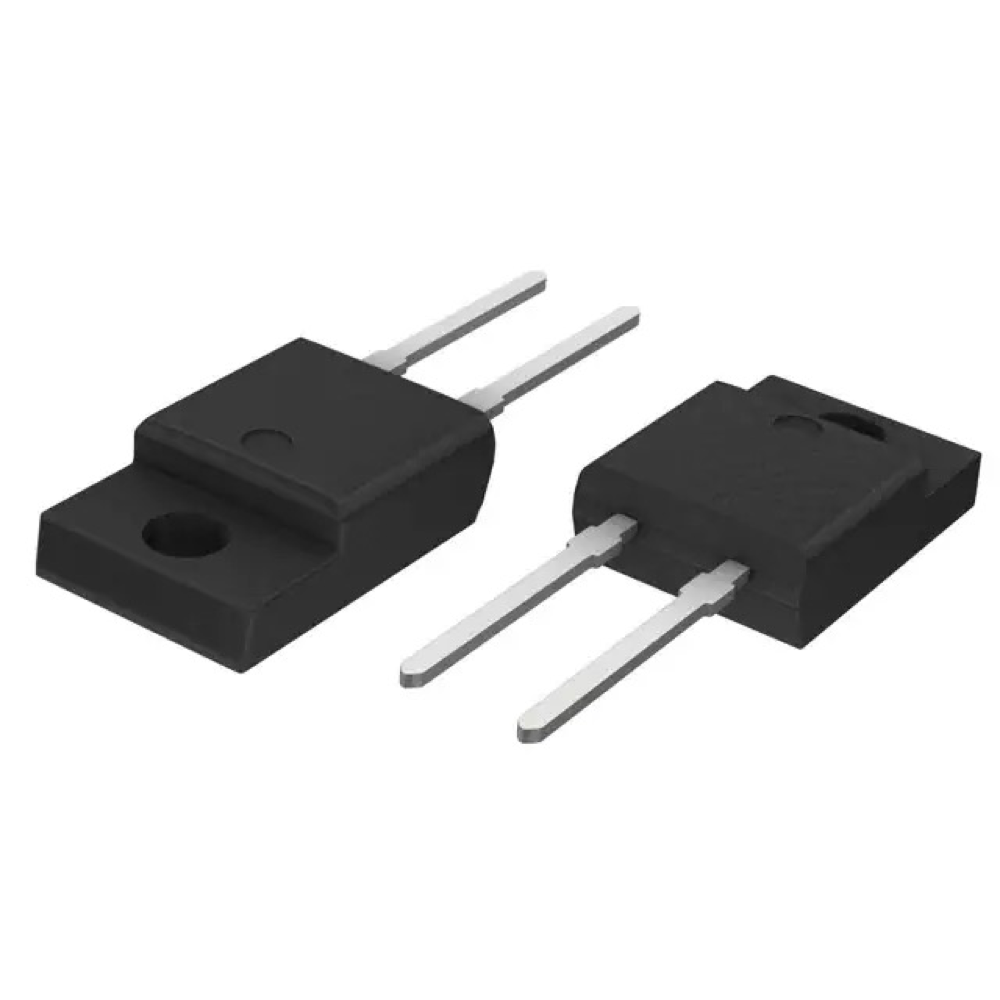

Diode 600 V 8A Through Hole TO-220FP
Features
• Soft Recovery with Guaranteed Low Reverse Recovery Charge
(QRR) and Peak Reverse Recovery Current (IRRM)
• 150°C Operating Junction Temperature
• Epoxy meets UL 94 V−0 @ 0.125 in
• Low Forward Voltage
• Low Leakage Current
• These are Pb−Free Devices
Detailed Description
| Mfr | onsemi |
| Series | SWITCHMODE™ |
| Package | Tube |
| Product Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) | 8A |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 8 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 120 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 Full Pack |
| Supplier Device Package | TO-220FP |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Base Product Number | MSRF860 |
Download
https://www.onsemi.com/pdf/datasheet/msr860-d.pdf
