Description

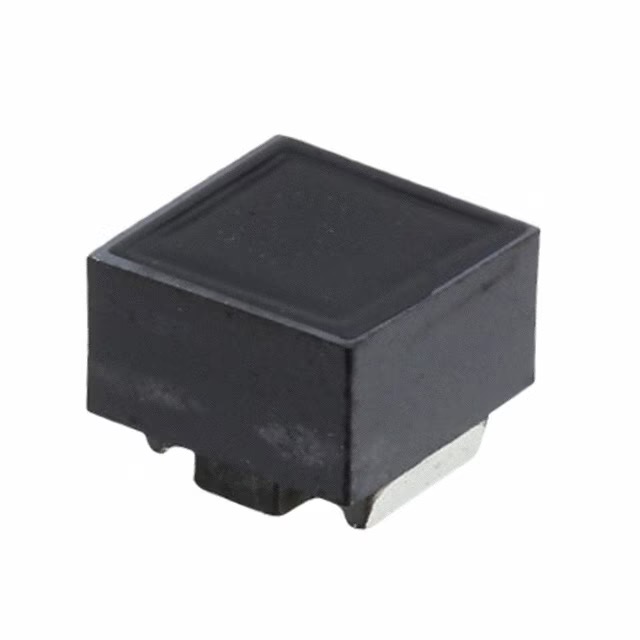

FIXED IND 1UH 4.7A 18.2 MOHM SMD
Detailed Description
| Mfr Part # | LQH66SN1R0M03L |
| Mfr | Murata Electronics |
| Description | FIXED IND 1UH 4.7A 18.2 MOHM SMD |
| Stock | 110 |
| Price | 2.31 |
| @ qty | 0 |
| Min Qty | 1 |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Series | LQH66 |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 4.7 A |
| Current - Saturation (Isat) | - |
| DC Resistance (DCR) | 18.2mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 150MHz |
| Size / Dimension | 0.248" L x 0.248" W (6.30mm x 6.30mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Inductor for Power Lines (Power Inductor)
A high Q value is achieved when the PCB electrode land pattern is designed so that it does not project beyond the chip inductor (chip coil) electrode.
