Description

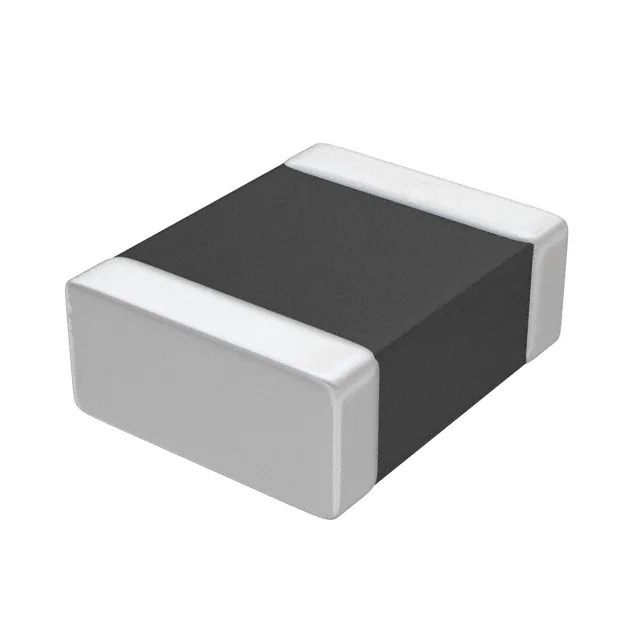

FIXED IND 1.5UH 950MA 360MOHM SM
Detailed Description
| Mfr Part # | LQM2HPN1R5MCHL |
| Mfr | Murata Electronics |
| Description | FIXED IND 1.5UH 950MA 360MOHM SM |
| Stock | 2,990 |
| Price | 0.41 |
| @ qty | 0 |
| Min Qty | 1 |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Series | LQM2 |
| Part Status | Active |
| Type | Multilayer |
| Material - Core | Ferrite |
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 950 mA |
| Current - Saturation (Isat) | 600mA |
| DC Resistance (DCR) | 360mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 40MHz |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
LQM2HPN_CH series
This reference specification applies to chip coils (chip inductors) LQM2HPN_CH series for general electronic equipment.
Operating temperature range -40°C to +85°C
Storage temperature range -40°C to +85°C
