Description
IND,16.5X15.5X9.7MM,15UH20%,18A,
Detailed Description
| Mfr Part # | SRP1510CA-150M |
| Mfr | Bourns Inc. |
| Description | IND,16.5X15.5X9.7MM,15UH20%,18A, |
| Stock | 298 |
| Price | 4.55 |
| @ qty | 0 |
| Min Qty | 1 |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Series | * |
| Part Status | Active |
| Type | - |
| Material - Core | Metal |
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 18 A |
| Current - Saturation (Isat) | 23A |
| DC Resistance (DCR) | 11.5mOhm Max |
| Q @ Freq | 30 @ 100kHz |
| Frequency - Self Resonant | 6MHz |
| Size / Dimension | 0.650" L x 0.610" W (16.50mm x 15.50mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |

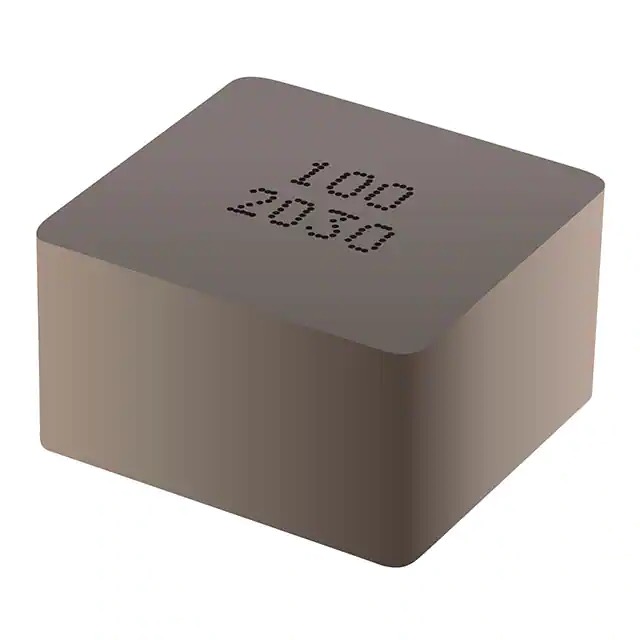

SRP1510CA Series- Shielded Power Inductors Features
*Shielded construction
*Metal alloy powder core
*High saturation current
*Low buzz noise n Flat wire
*AEC-Q200 compliant
*RoHS compliant* and halogen free**
Download
