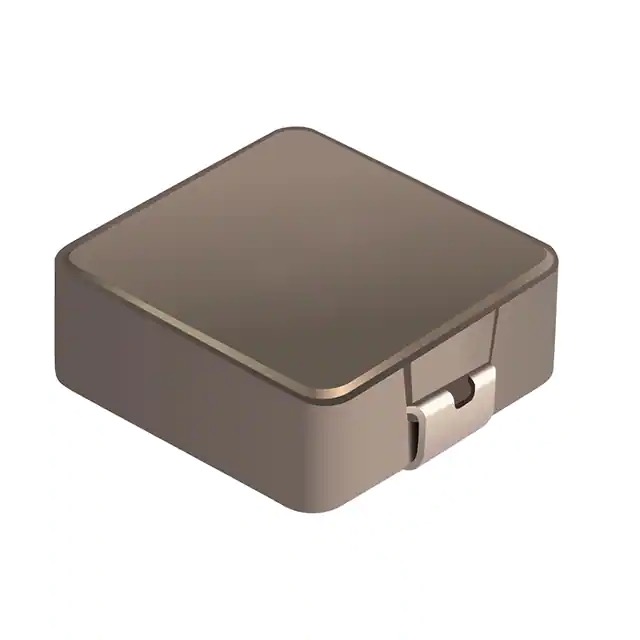

SRP1040VA-4R7M
Bourns Inc.
| Quantity: | |
|---|---|
Description
FIXED IND 4.7UH 13A 15.3MOHM SMD
Detailed Description
| Mfr Part # | SRP1040VA-4R7M |
| Mfr | Bourns Inc. |
| Description | FIXED IND 4.7UH 13A 15.3MOHM SMD |
| Stock | 420 |
| Price | 2.14 |
| @ qty | 0 |
| Min Qty | 1 |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Series | SRP1040VA |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Metal |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 13 A |
| Current - Saturation (Isat) | 15A |
| DC Resistance (DCR) | 15.3mOhm Max |
| Q @ Freq | 15 @ 100kHz |
| Frequency - Self Resonant | 15MHz |
| Size / Dimension | 0.433" L x 0.394" W (11.00mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
SRP1040VA Series – Shielded Power Inductors Features
■ Shielded construction
■ Metal alloy powder core
■ High saturation current
■ Low buzz noise
■ High temperature 180 °C
■ AEC-Q200 compliant
■ RoHS compliant* and halogen free**
How to Order？
| SRP1040VA | 100M |
| Model | Value Code (see table) |
Download
