Description
DIODE GP 120V 200MA SOT23-3
The "BAS19LT1G" is a surface-mount small signal switching diode. It is designed for general-purpose switching and signal rectification applications in electronic circuits.
Key specifications for the "BAS19LT1G" diode are:
Voltage Rating: 100 volts
Current Rating: 200 milliamperes (mA)
As a small signal diode, the "BAS19LT1G" is optimized for fast switching with low forward voltage drop, making it suitable for high-frequency applications. It efficiently conducts current in the forward direction while blocking current in the reverse direction.

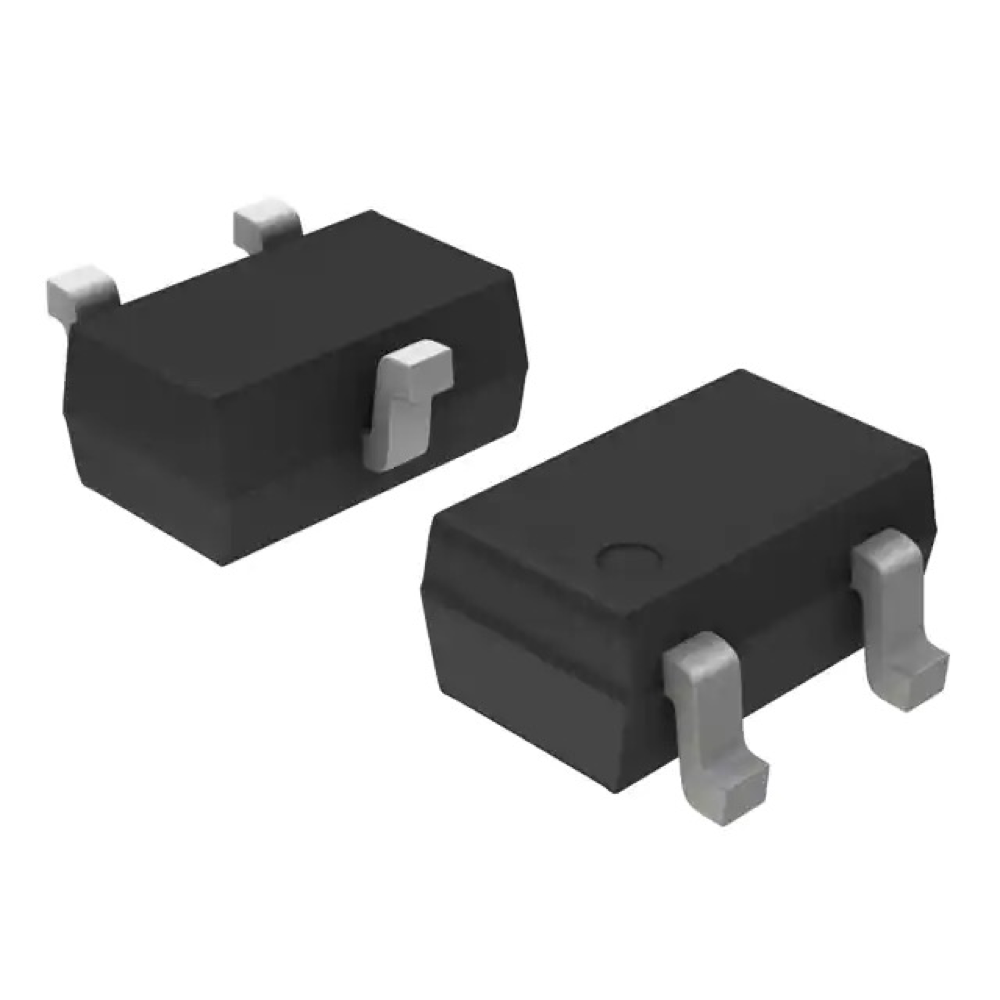

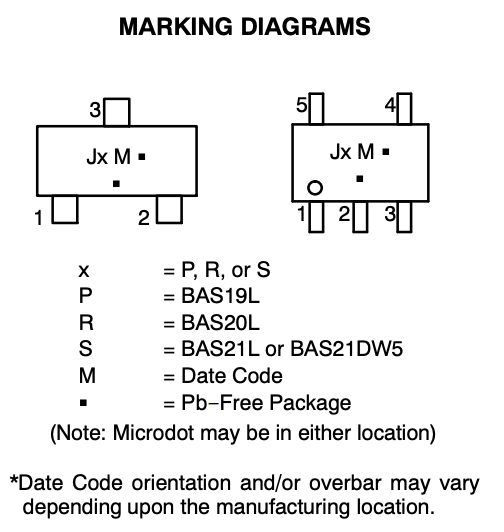

This diode is housed in a compact surface-mount package, which allows for easy integration into modern electronic circuit designs. Its small form factor makes it ideal for space-constrained applications.
Typical applications for the "BAS19LT1G" diode include signal rectification, signal demodulation, and voltage clamping in various electronic circuits.
As with any electronic component, it is essential to refer to the manufacturer's datasheet or documentation for detailed specifications, electrical characteristics, and usage guidelines specific to the "BAS19LT1G" diode. This will ensure proper usage and integration into your electronic projects.
Features
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
• S and NSV Prefixes for Automotive and Other Applications
Requiring Unique Site and Control Change Requirements;
AEC−Q101 Qualified and PPAP Capabl
Detailed Description
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 120 V |
| Current - Average Rectified (Io) | 200mA |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 200 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 50 ns |
| Current - Reverse Leakage @ Vr | 100 nA @ 100 V |
| Capacitance @ Vr, F | 5pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |

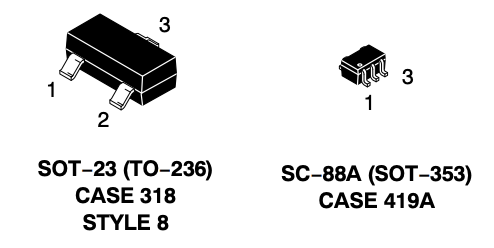

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | BAS19 |
Download
https://www.onsemi.com/download/data-sheet/pdf/bas19lt1-d.pdf
