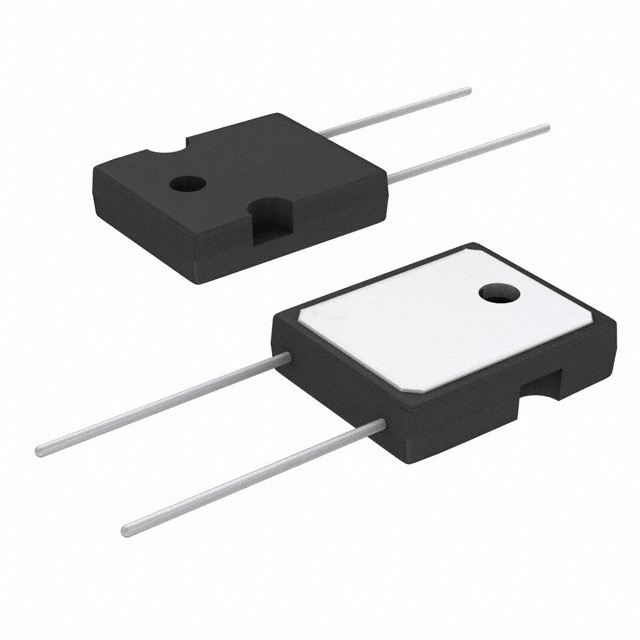

VS-90EPS12L-M3
Vishay
| Quantity: |
|---|
Description
DIODE GEN PURP 1.2KV 90A TO247AD
The "VS-90EPS12L-M3" is a high-power Schottky diode module designed for efficient and reliable power electronics applications. It is commonly used in high-voltage and high-current applications, such as power rectification, power factor correction, and motor drives.
Key specifications for the "VS-90EPS12L-M3" diode module are:
Voltage Rating: 1200 volts
Current Rating: 90 amperes
This diode module features a high voltage and current handling capability, making it suitable for heavy-duty power applications. Schottky diodes are known for their low forward voltage drop and fast switching characteristics, which contribute to reduced power losses and efficient switching performance.
The "VS-90EPS12L-M3" is designed with advanced semiconductor technology and efficient thermal management, ensuring reliable operation under high-power conditions. Its robust construction and compact package facilitate easy integration into power electronic systems.
Typical applications for the "VS-90EPS12L-M3" diode module include power converters, motor drives, renewable energy systems, and industrial power supplies.
As with any power electronic component, it is crucial to refer to the manufacturer's datasheet or documentation for detailed specifications, electrical characteristics, and usage guidelines specific to the "VS-90EPS12L-M3" diode module. This will ensure proper usage and integration into your power electronics projects.
FEATURES
• Very low forward voltage drop
• 150 °C max. operating junction temperature
• Glass passivated pallet chip junction
• Designed and qualified according to
JEDEC®-JESD 47
Detailed Description
| Package | Tube |
| Product Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Current - Average Rectified (Io) | 90A |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 90 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 100 µA @ 1200 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | TO-247-2 |
| Supplier Device Package | TO-247AD |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Base Product Number | 90EPS12 |
Download
https://www.vishay.com/docs/93396/vs-90epsl-m3.pdf
