Description

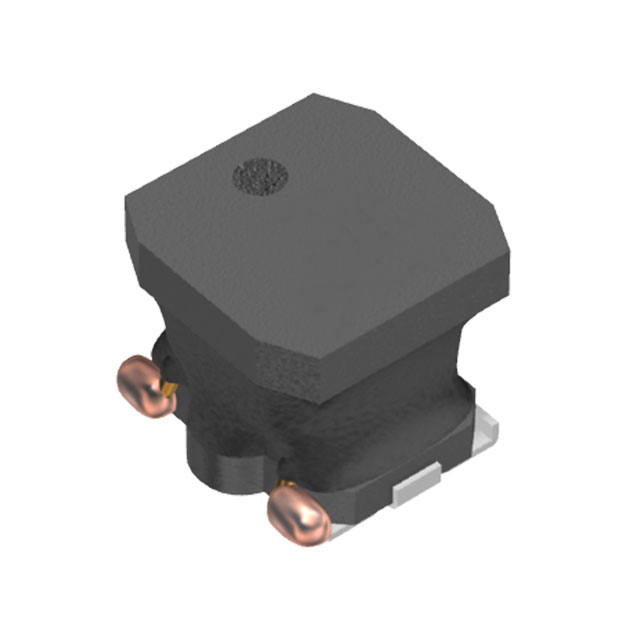

FIXED IND 3.3UH 4.2A 35.1MOHM SM
Detailed Description
| Mfr Part # | VLS5045EX-3R3N-CA |
| Mfr | TDK Corporation |
| Description | FIXED IND 3.3UH 4.2A 35.1MOHM SM |
| Stock | 1,180 |
| Price | 0.55 |
| @ qty | 0 |
| Min Qty | 1 |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Series | VLS-EX |
| Part Status | Not For New Designs |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 4.2 A |
| Current - Saturation (Isat) | 5.2A |
| DC Resistance (DCR) | 35.1mOhm Max |
| Q @ Freq | - |
| Inductance Frequency - Test | 100 kHz |
| Package / Case | Nonstandard |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
VLS5045EX-CA type APPLICATION
Car navigation, car stereo and car accessories only
*Not available for use related to driving, curving, stopping, and the other safety.
VLS5045EX-CA type FEATURES
Magnetic shield type wound inductor for power circuits.
High magnetic shield construction achieved by a ferrite magnetic material and compatible with high-density mounting.
Larger current and lower Rdc were achieved by optimizing the ferrite core figure.
Operating temperature range: –40 to +105°C (including self-temperature rise).
Introducing the VLS5045EX-CA series inductors - the ultimate solution for automotive-related equipment. These high-quality inductors have been specifically designed to meet the demands of car navigation and car audio systems, ensuring optimal performance and reliability.
Crafted with precision and attention to detail, the VLS5045EX-CA series inductors boast a range of impressive features that make them the ideal choice for any automotive application. With a robust construction and advanced materials, these inductors are built to withstand the toughest conditions and offer long-lasting performance.
Whether you're designing a car audio system or developing a cutting-edge car navigation solution, the VLS5045EX-CA series inductors provide the perfect solution. With their exceptional performance and reliability, you can be sure that your automotive-related equipment will operate at peak performance, delivering unparalleled sound quality and accuracy.
So why wait? Upgrade your car audio or navigation system today with the SPM-HZ series inductors and experience the ultimate in automotive performance.
