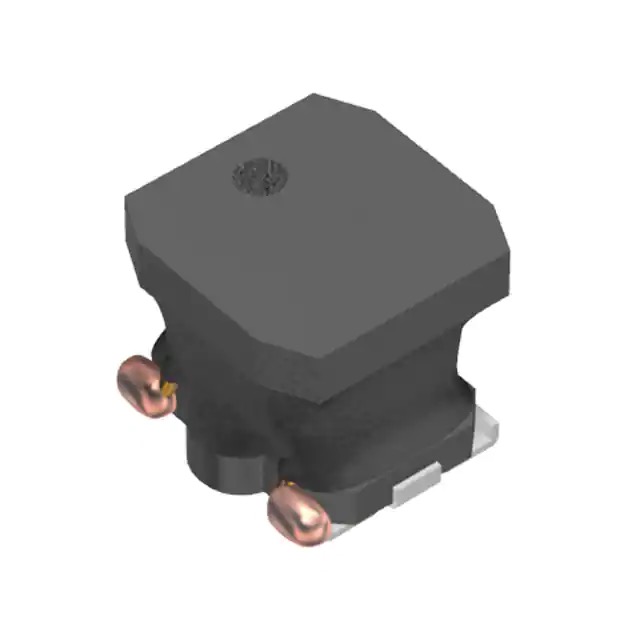

VLS6045EX-680M-H
TDK
| Quantity: | |
|---|---|
Description
FIXED IND 68UH 1A 403 MOHM SMD
Detailed Description
| Mfr Part # | VLS6045EX-680M-H |
| Mfr | TDK Corporation |
| Description | FIXED IND 68UH 1A 403 MOHM SMD |
| Stock | 3,101 |
| Price | 0.61 |
| @ qty | 0 |
| Min Qty | 1 |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Series | VLS-EX-H |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1 A |
| Current - Saturation (Isat) | 1.4A |
| DC Resistance (DCR) | 403mOhm Max |
| Q @ Freq | - |
| Inductance Frequency - Test | 100 kHz |
| Package / Case | Nonstandard |
| Size / Dimension | 0.248" L x 0.236" W (6.30mm x 6.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
VLS5045EX-H type APPLICATION
Automotive-related equipment (ECM, airbags, headlights, electronic power steering, meters, ABS, other)
Introducing the VLS6045EX type Fixed Inductor, the perfect solution for your TV, STB, gaming equipment, and other AV equipment needs. This high-quality fixed inductor is designed to deliver exceptional performance and reliability, making it an ideal choice for a wide range of applications.
Crafted with precision and attention to detail, the VLS6045EX type Fixed Inductor boasts a range of impressive features that set it apart from the competition. With a compact design and a wide range of inductance values, this inductor is versatile enough to meet the needs of even the most demanding applications.
