Description
FIXED IND 4.7UH 4.7A 26MOHM SMD
Detailed Description
| Mfr | TDK Corporation |
| Description | FIXED IND 4.7UH 4.7A 26MOHM SMD |
| Stock | 2,186 |
| Price | 0.56 |
| @ qty | 0 |
| Min Qty | 1 |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Series | VLS |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 4.7 A |
| Current - Saturation (Isat) | 4.3A |
| DC Resistance (DCR) | 26mOhm |
| Q @ Freq | - |
| Inductance Frequency - Test | 100 kHz |
| Package / Case | Nonstandard |

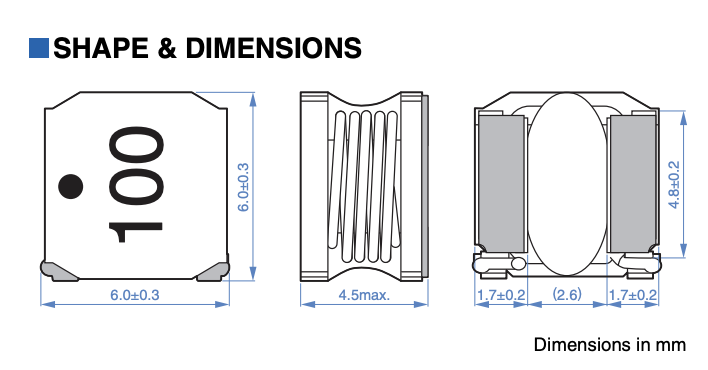

| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
VLS6045AF type APPLICATION
Class-D amplifier (AI speakers, Bluetooth speakers, TV speakers)
Introducing the VLS6045AF type Fixed Inductor, the perfect solution for AI speakers, Bluetooth speakers, and other TV equipment needs. This high-quality fixed inductor is designed to deliver exceptional performance and reliability, making it an ideal choice for a wide range of applications.
Crafted with precision and attention to detail, the VLS6045AF type Fixed Inductor boasts a range of impressive features that set it apart from the competition. With a compact design and a wide range of inductance values, this inductor is versatile enough to meet the needs of even the most demanding applications.
Whether you're looking to improve the performance of your TV or STB, or you need a reliable inductor for your gaming equipment or other AV devices, the VLS6045AF type Fixed Inductor is the perfect choice. So why wait? Order yours today and experience the difference for yourself!
VLS6045AF type FEATURES
1.Magnetic shield type wound inductor for power circuits.
2.High magnetic shield construction achieved by a ferrite magnetic material and compatible with high-density mounting. 3.Optimization of THD+N (Total Harmonic Distortion + Noise) characteristics based on VLS6045EX coils
4.Operating temperature range: –40 to +105°C (Including self-temperature rise)
Download
