Description
FIXED IND 1.5UH 5A 22.1MOHM SMD
Detailed Description
| Mfr Part # | VLS5045EX-1R5N-H |
| Mfr | TDK Corporation |
| Description | FIXED IND 1.5UH 5A 22.1MOHM SMD |
| Stock | 2,819 |
| Price | 0.55 |
| @ qty | 0 |
| Min Qty | 1 |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Series | VLS-EX-H |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 1.5 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 5 A |
| Current - Saturation (Isat) | 7.4A |
| DC Resistance (DCR) | 22.1mOhm Max |
| Q @ Freq | - |
| Inductance Frequency - Test | 100 kHz |
| Package / Case | Nonstandard |

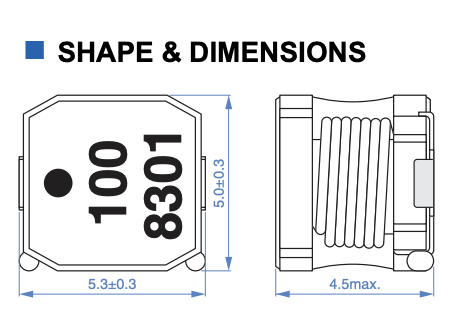

| Size / Dimension | 0.209" L x 0.197" W (5.30mm x 5.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
VLS5045EX-H type APPLICATION
Automotive-related equipment (ECM, airbags, headlights, electronic power steering, meters, ABS, other)
Introducing the VLS5045EX-H type Fixed Inductor, the perfect solution for your ECM, airbags, headlights, and other Automotive-related. This high-quality fixed inductor is designed to deliver exceptional performance and reliability, making it an ideal choice for a wide range of applications.
Crafted with precision and attention to detail, the VLS5045EX-H type Fixed Inductor boasts a range of impressive features that set it apart from the competition. With a compact design and a wide range of inductance values, this inductor is versatile enough to meet the needs of even the most demanding applications.
Whether you're looking to improve the performance of the electronic power steering, meters, or you need a reliable inductor for your gaming equipment or other AV devices, the VLS5045EX-H type Fixed Inductor is the perfect choice. So why wait? Order yours today and experience the difference for yourself!
Download
