Film Inductor LQP02HQ36NH02E Murata
Home » Products » Inductors » Fixed Inductors » Film Inductor LQP02HQ36NH02E Murata

Product Category

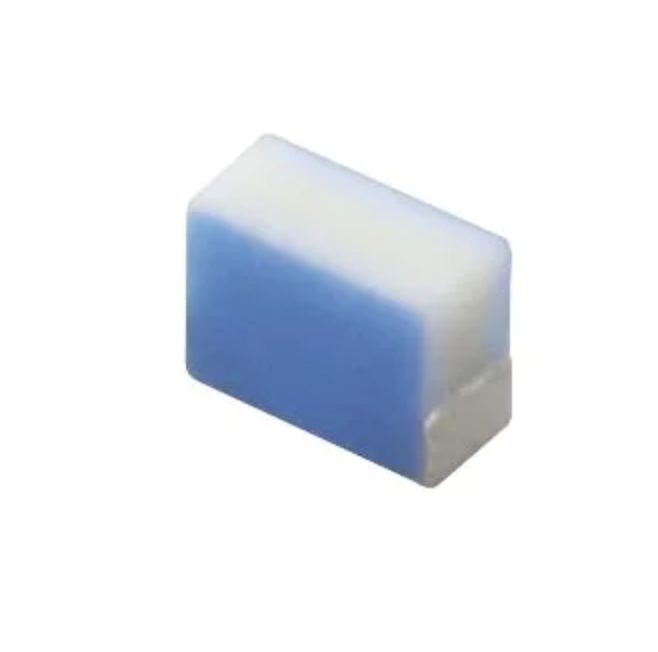

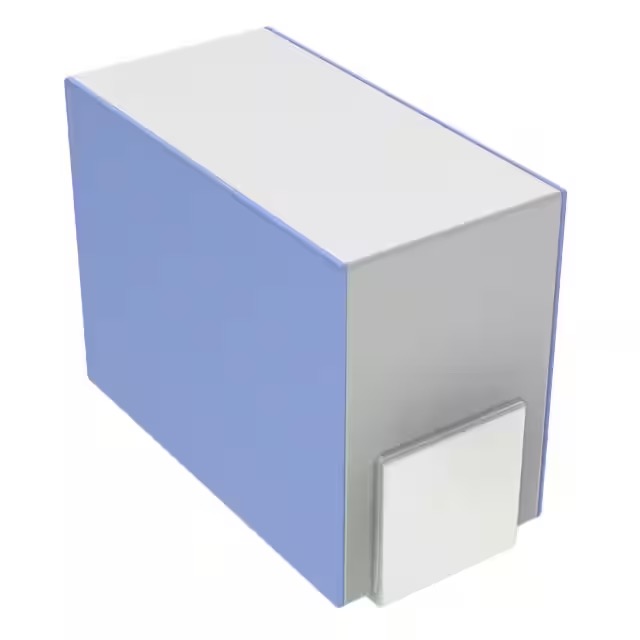

Film Inductor LQP02HQ36NH02E Murata

  • LQP02HQ36NH02E

  • Murata Electronics

Availability:
Quantity:

Description

FIXED IND 36NH 110MA SMD


Detailed Description


Mfr Part #LQP02HQ36NH02E
MfrMurata Electronics
DescriptionFIXED IND 36NH 110MA SMD
Stock14,428
Price0.2
@ qty0
Min Qty1
 PackageTape & Reel (TR),Cut Tape (CT)
SeriesLQP03
Part StatusActive
TypeThin Film
Material - Core-
Inductance36 nH
Tolerance±3%
Current Rating (Amps)110 mA
Current - Saturation (Isat)-
DC Resistance (DCR)-
Q @ Freq-
Frequency - Self Resonant-

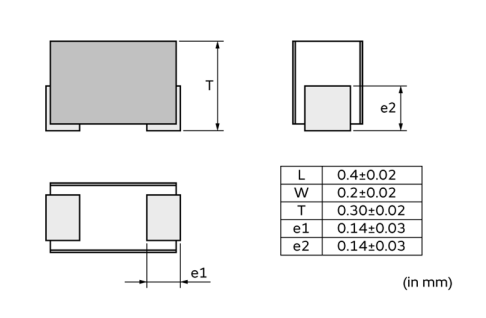

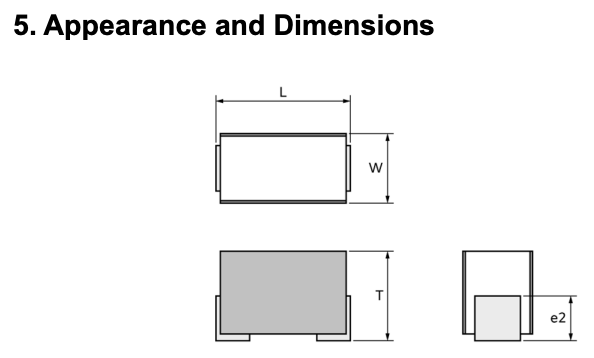

Size / Dimension0.016" L x 0.008" W (0.40mm x 0.20mm)
Height - Seated (Max)0.013" (0.32mm)


Part Number and Rating

Operating temperature range -55°C to +125°C

Storage temperature range -55°C to +125°C

This reference applies to chip coils (chip inductors) LQP02HQ_02 series for general electronic equipment.


LQP02HQ36NH02E application:

Consumer equipment,Medical equipment [GHTF A/B/C] except for implant & operation & auto-dispenser

equipment,Industrial equipment except for transportation

& facility & energy equipment

Please refer to Our Website and specifications, etc. for information about the performance, functions,

quality, management, and safety required for the above applications, and use Products after confirming the

performance and reliability of the actual Product.

With its compact size and durable construction, the LQP02HQ36NH series chip inductor is ideal for use in consumer equipment such as smartphones, tablets, and gaming consoles. It provides excellent filtering and noise suppression, ensuring that your devices operate smoothly and efficiently.

In the medical field, where precision and accuracy are critical, the LQP02HQ36NH series chip inductor delivers exceptional performance. It is designed to withstand the harsh conditions and demanding requirements of medical equipment, ensuring that your devices operate reliably and consistently.

For industrial equipment, the LQP02HQ36NH series chip inductor is a top choice. It is engineered to withstand extreme temperatures, shock, and vibration, making it suitable for use in harsh environments. It provides excellent power handling capabilities, ensuring that your equipment operates efficiently and reliably.



Download

JELF243C-0023.pdf
