Description
FIXED IND 5.6UH 5.4A 41.25 MOHM
Detailed Description
| Mfr Part # | SPM6530T-5R6M-HZ |
| Mfr | TDK Corporation |
| Description | FIXED IND 5.6UH 5.4A 41.25 MOHM |
| Stock | 954 |
| Price | 2.17 |
| @ qty | 0 |
| Min Qty | 1 |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Series | SPM-HZ |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Metal |
| Inductance | 5.6 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.4 A |
| Current - Saturation (Isat) | 4A |
| DC Resistance (DCR) | 41.25mOhm Max |
| Q @ Freq | - |
| Inductance Frequency - Test | 100 kHz |
| Package / Case | Nonstandard |
| Size / Dimension | 0.280" L x 0.256" W (7.10mm x 6.50mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |

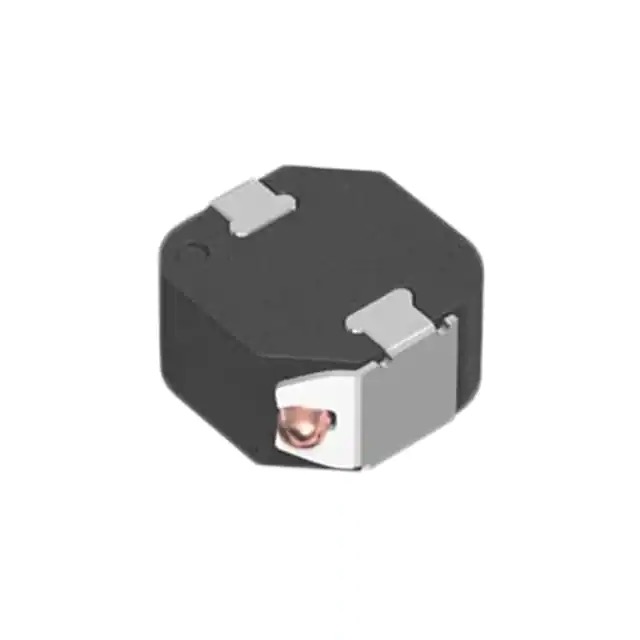

SPM6530-HZ type FEATURES
Magnetic shield type wound inductor for power circuits using a metallic magnetic material.
Compared to ferrite wound type inductors, it is possible to achieve large current, low Rdc, and compactness.
Low inductance variance in high-temperature environments with good DC superimposition characteristics. –40 to 125°C (including self-temperature rise)
Metallic magnetic material is used, and the structure has an integrated molded coil, so hum noise is lower than with ferrite core adhesive coils.
Operating temperature range: –40 to +125 °C (including self-temperature rise)
Compliant with AEC-Q200
APPLICATION
Automotive-related equipment (Car navigation, car audio)
