Description

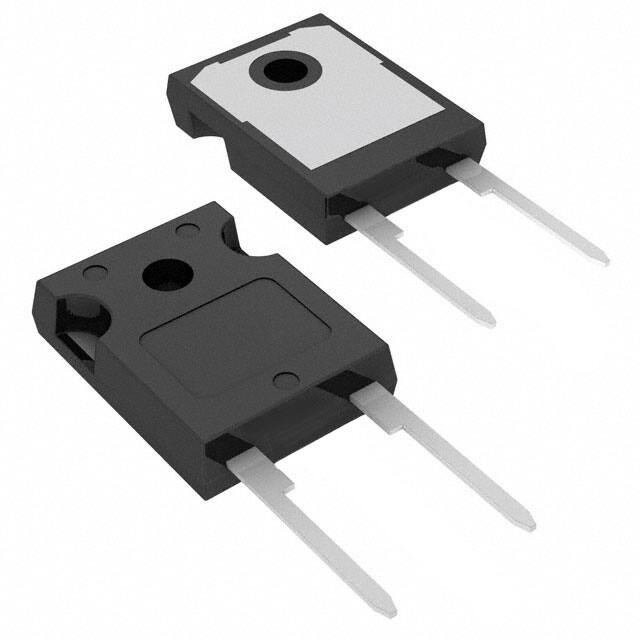

DIODE SIL CARB 650V 20A TO247-2
Features
• Max Junction Temperature 175°C
• Avalanche Rated 94 mJ
• High Surge Current Capacity
• Positive Temperature Coefficient
• Ease of Paralleling
• No Reverse Recovery/No Forward Recovery
• AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant Applications
• Automotive HEV−EV Onboard Chargers
• Automotive HEV−EV DC−DC Converters
Detailed Description
| Mfr Part # | FFSH2065B-F085 |
| Mfr | onsemi |
| Series | Automotive, AEC-Q101 |
| Package | Tube |
| Product Status | Active |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Current - Average Rectified (Io) | 20A |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 20 A |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 40 µA @ 650 V |
| Capacitance @ Vr, F | 866pF @ 1V, 100kHz |
| Mounting Type | Through Hole |
| Package / Case | TO-247-2 |
| Supplier Device Package | TO-247-2 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Base Product Number | FFSH2065 |
Download
