Description
DIODE SIL CARB 650V 20A D2PAK-3 The FFSB2065B-F085 features a low on-resistance and fast switching speed, making it ideal for applications requiring high-power handling and minimal power loss. Its advanced technology ensures reliable and efficient power management. With its compact size and surface-mount package, the FFSB2065B-F085 is well-suited for space-constrained designs. Whether you're working on power supplies, motor control systems, or DC-DC converters, this MOSFET provides a reliable and efficient solution. The FFSB2065B-F085 is built with high-quality materials and undergoes stringent testing to ensure its durability and reliability. It operates within a wide temperature range, making it suitable for various operating conditions and environments. |
Detailed Description
Mfr Part # | FFSB2065B-F085 |
Mfr | onsemi |
Series | Automotive, AEC-Q101 |
Package | Tape & Reel (TR) |
Cut Tape (CT) | |
Digi-Reel® | |
Product Status | Active |
Technology | SiC (Silicon Carbide) Schottky |
Voltage - DC Reverse (Vr) (Max) | 650 V |
Current - Average Rectified (Io) | 20A |
Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 20 A |
Speed | No Recovery Time > 500mA (Io) |
Reverse Recovery Time (trr) | 0 ns |
Current - Reverse Leakage @ Vr | 40 µA @ 650 V |
Capacitance @ Vr, F | 866pF @ 1V, 100kHz |
Mounting Type | Surface Mount |

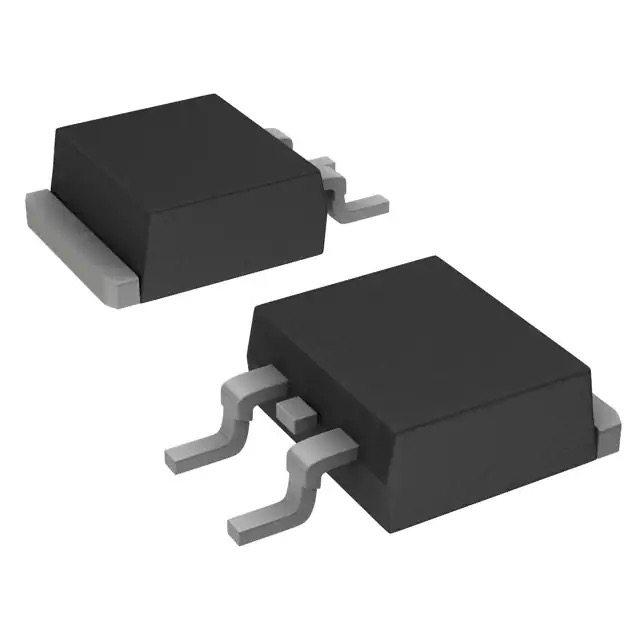

Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
Supplier Device Package | D²PAK-3 (TO-263-3) |
Operating Temperature - Junction | -55°C ~ 175°C |
Base Product Number | FFSB2065 |
Download
https://www.onsemi.com/pdf/datasheet/ffsb2065b-f085-d.pdf
