Description

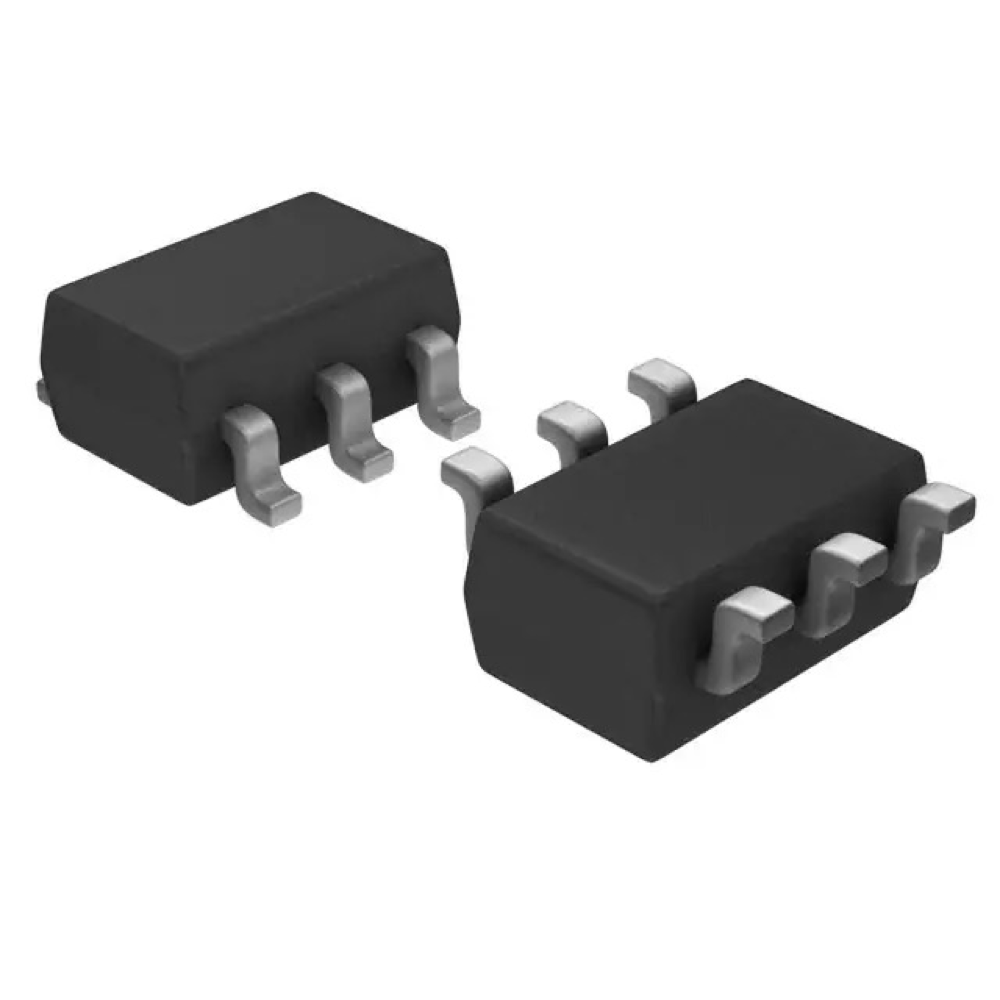

Diode 30 V 3A Surface Mount 6-CPH
The SB3003CH-TL-W is a surface-mount diode with a voltage rating of 30V and a current handling capacity of 3A. This diode is designed to efficiently manage electrical current flow in electronic circuits. Its compact 6-CPH package makes it suitable for space-constrained designs and surface-mount assembly processes.
This diode can be used in various applications, including power supplies, voltage regulators, rectifiers, and protection circuits. It aids in converting alternating current (AC) to direct current (DC), preventing current from flowing in the reverse direction, and safeguarding sensitive components from voltage spikes.
The SB3003CH-TL-W diode's characteristics make it a versatile choice for a range of electronic projects. Its efficient design and performance capabilities ensure that it contributes to the reliability and functionality of circuits where rectification and current management are essential.
Detailed Description
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Obsolete |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 520 mV @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 20 ns |
| Current - Reverse Leakage @ Vr | 42 µA @ 15 V |
| Capacitance @ Vr, F | 90pF @ 10V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | 6-CPH |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Base Product Number | SB3003 |
