Description
DIODE SCHOTTKY 40V 1A SOD323HE
The "NRVBSS14HE" is a specific part number for a Schottky diode manufactured by ON Semiconductor. Here are the key specifications for the NRVBSS14HE diode:
Type: Schottky Diode
Maximum Voltage Rating: 40V
Maximum Current Rating: 1A (or 1000mA)
Package: SOD-323HE
Features and Applications:
The NRVBSS14HE diode is designed for various electronic circuits, particularly for Schottky diode applications. It offers the following features:
Low Forward Voltage Drop: Schottky diodes have a lower forward voltage drop compared to standard silicon diodes, reducing power losses and improving efficiency.
Fast Switching Speed: Schottky diodes have a fast switching speed, making them suitable for applications where quick response times are required.
Small Package: The SOD-323HE package is a small surface-mount package, suitable for space-constrained applications and compatible with automated assembly processes.
General-Purpose Schottky Diode: It can be used in a wide range of general-purpose rectification and switching applications.
Applications for the NRVBSS14HE diode include but are not limited to:
Rectification in power supplies and voltage regulators.
High-speed switching in digital and analog circuits.
Reverse polarity protection and voltage clamping circuits.
Signal detection and demodulation in communication circuits.

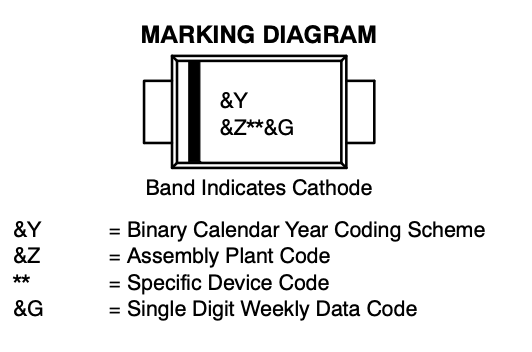

Features
• Very Low Profile − Typical Height of 0.68 mm
• Low Power Loss, High Efficiency
• Moisture Sensitivity Level 1 per J−STD−020
• UL Flammability 94V−0 Classification
• RoHS Compliant / Green Molding Compound
• NRVB Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q101
Qualified and PPAP Capable
Detailed Description
| Mfr Part # | NRVBSS14HE |
| Mfr | onsemi |
| Series | Automotive, AEC-Q101 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 5.6 ns |
| Current - Reverse Leakage @ Vr | 50 µA @ 40 V |
| Capacitance @ Vr, F | 55pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, Flat Lead |
| Supplier Device Package | SOD-323HE |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | NRVBSS14 |
Download
https://www.onsemi.com/pdf/datasheet/ss13he-d.pdf
