Description

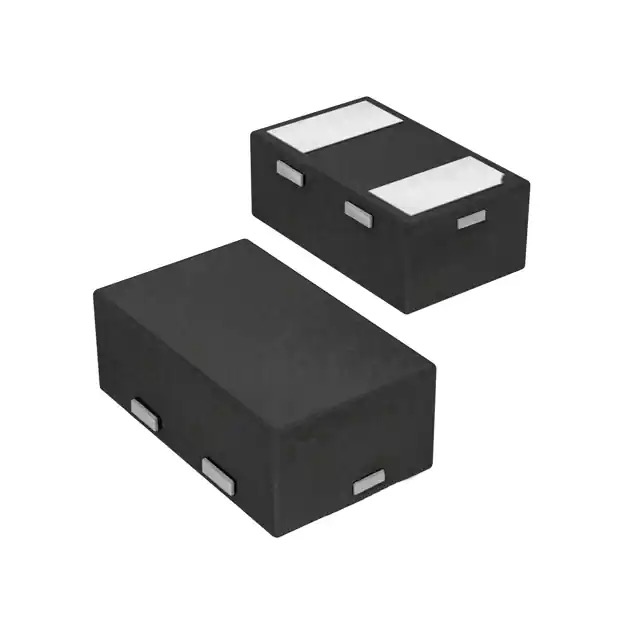

DIODE SCHOTTKY 30V 200MA 2DFN
Detailed Description
| Mfr Part # | BAT54LP-7B |
| Mfr | Diodes Incorporated |
| Description | DIODE SCHOTTKY 30V 200MA 2DFN |
| Stock | 9,928 |
| Price | 0.44 |
| @ qty | 0 |
| Min Qty | 1 |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Series | Automotive, AEC-Q101 |
| Part Status | Active |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 200mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V |
| Capacitance @ Vr, F | 10pF @ 1V, 1MHz |
| Package / Case | 0402 (1006 Metric) |
BAT54LP-7B Diodes Incorporated Features：
*Low Forward Voltage Drop
*Fast Switching
*Ultra-Small Leadless Surface Mount Package
*PN Junction Guard Ring for Transient and ESD Protection
*Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
*Halogen and Antimony Free. “Green” Device (Note 3)
*Qualified to AEC-Q101 Standards for High Reliability
