Description

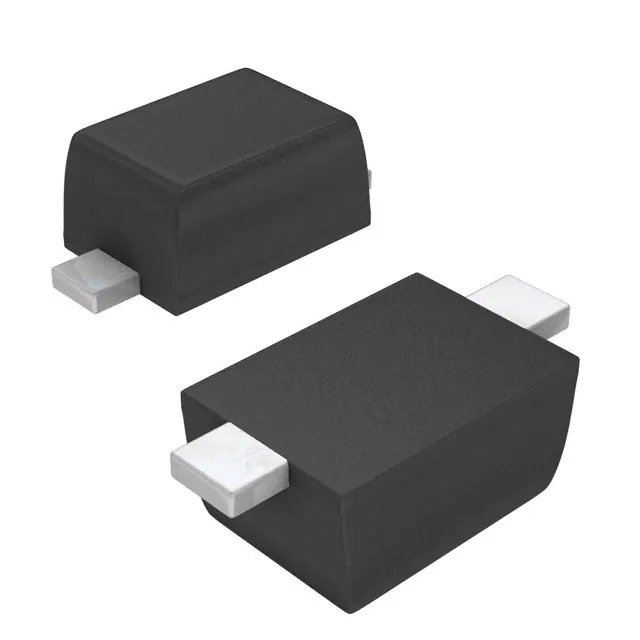

DIODE GEN PURP 80V 125MA SOD523
Detailed Description
| Mfr Part # | 1N4148WTQ-7 |
| Mfr | Diodes Incorporated |
| Description | SWITCHING DIODE SOD523 |
| Stock | 4 |
| Price | 0.24 |
| @ qty | 0 |
| Min Qty | 1 |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Series | Automotive, AEC-Q101 |
| Part Status | Active |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 80 V |
| Current - Average Rectified (Io) | 125mA |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Current - Reverse Leakage @ Vr | 1 µA @ 75 V |
| Capacitance @ Vr, F | 2pF @ 0V, 1MHz |
| Package / Case | SC-79, SOD-523 |
1N4148WTQ-7 Diodes Incorporated Features：
*Fast Switching Speed
* Very Small Surface Mount Package
* For General Purpose Switching Applications
* High Conductance
Download
