Description
FIXED IND 1UH 15A 4.2 MOHM SMD
Detailed Description
| Mfr Part # | SPM10040T-1R0M |
| Mfr | TDK Corporation |
| Description | FIXED IND 1UH 15A 4.2 MOHM SMD |
| Stock | 687 |
| Price | 1.54 |
| @ qty | 0 |
| Min Qty | 1 |

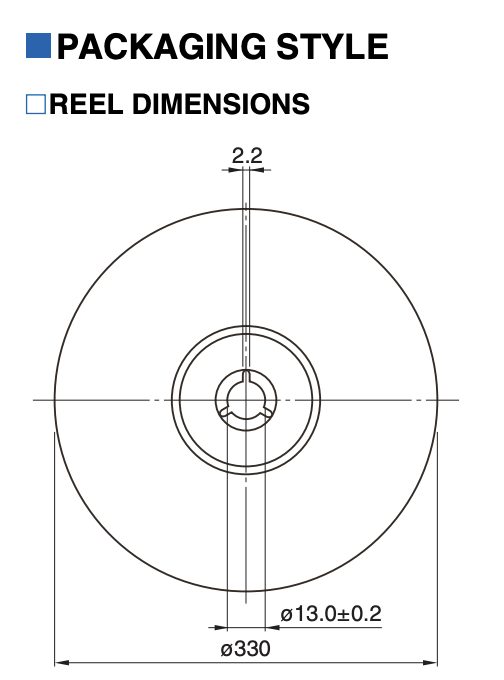

| Package | Tape & Reel (TR),Cut Tape (CT) |
| Series | SPM |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Metal |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 15 A |
| Current - Saturation (Isat) | 18A |
| DC Resistance (DCR) | 4.2mOhm Max |
| Q @ Freq | - |
| Inductance Frequency - Test | 100 kHz |
| Package / Case | Nonstandard |

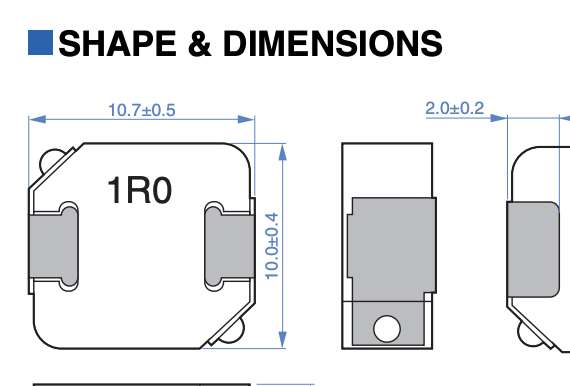

| Size / Dimension | 0.421" L x 0.394" W (10.70mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
SPM10040 type APPLICATION
Note PCs, HDDs, servers, VRMs, compact power supply modules, other.
SPM10040 type FEATURES
Magnetic shield type wound inductor for power circuits using a metallic magnetic material.
Compared to ferrite wound type inductors, it is possible to achieve large current, low Rdc, and compactness.
Low inductance variance in high-temperature environments with good DC superimposition characteristics.
Metallic magnetic material is used, and the structure has an integrated molded coil, so hum noise is lower than with core adhesive coils.
Operating temperature range: –40 to +125 °C (including self-temperature rise).
Introducing the SPM10040 series fixed inductor, designed to cater to the growing demand for high-performance inductors in the technology industry. Our product is engineered to provide superior performance and reliability, making it the perfect choice for tablet terminals, note PCs, HDDs, servers, VRMs, compact power supply modules, and other applications.
Our SPM10040 series fixed inductor is specifically designed to meet the needs of the modern-day technology industry. With its compact size and advanced features, it is the ideal choice for smart phones and tablets. Our product is built to withstand the rigors of daily use, ensuring that your devices operate smoothly and efficiently.
Our inductor is made using the highest quality materials and advanced manufacturing techniques, ensuring that it meets the highest standards of quality and performance. It is designed to provide exceptional performance at high frequencies, making it the perfect choice for demanding applications.
Whether you are looking for a reliable inductor for your tablet terminals or other technology devices, our SPM10040 series fixed inductor is the perfect choice. With its advanced features and exceptional performance, it is sure to meet all your needs and exceed your expectations. So why wait? Order yours today and experience the difference for yourself!
