BCL322515RT-4R7M-D
TDK
| Quantity: | |
|---|---|
Description
INDUCTORS FOR POWER CIRCUITS, AU
Detailed Description
| Mfr Part # | BCL322515RT-4R7M-D |
| Mfr | TDK Corporation |
| Description | INDUCTORS FOR POWER CIRCUITS, AU |
| Stock | 4,000 |
| Price | 1.79 |
| @ qty | 0 |
| Min Qty | 1 |

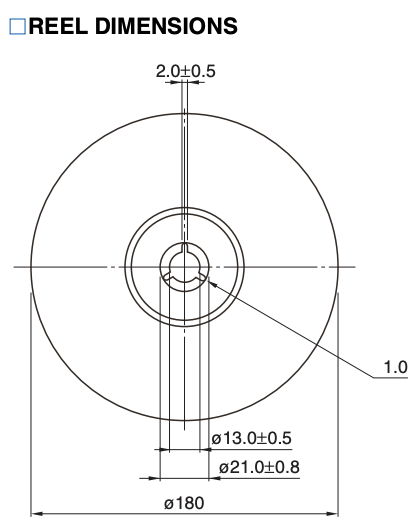

| Package | Tape & Reel (TR),Cut Tape (CT) |
| Series | BCL |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Metal |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.08 A |
| Current - Saturation (Isat) | 1.71A |
| DC Resistance (DCR) | 160mOhm Max |
| Q @ Freq | - |
| Inductance Frequency - Test | 1 MHz |

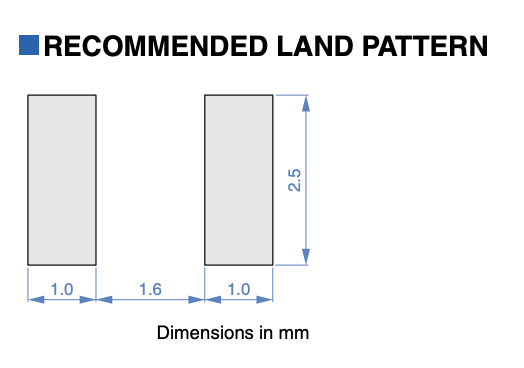

| Package / Case | 1210 (3225 Metric) |
APPLICATION ：
ADAS - Level5 for Camera.
BCL322515RT-D type FEATURES
The adoption of the new method has resulted in a high inductance that could not be achieved with conventional metallic materials.
Due to the properties of metallic materials, they are more able to handle larger currents than ferrite materials.
The use of high-µ materials has made it possible to achieve low Rdc in metal products.
The coil is fully encapsulated with a magnetic material to minimize leakage flux.
Supports rated voltage of 40V. Operating temperature rang.
The storage period is within 12 months. Be sure to follow the storage conditions (temperature: 5 to 40°C, humidity: 10 to 75% RH or less). If the storage period elapses, the soldering of the terminal electrodes may deteriorate. Do not use or store in locations where there are conditions such as gas corrosion (salt, acid, alkali, etc.). Storage conditions after mounting: –55°C to +155°C Soldering corrections after mounting should be within the range of the conditions determined in the specifications. If overheated, a short circuit, performance deterioration, or lifespan shortening may occur. Do not use products that have received any excessive mechanical shock such as by being dropped.
Download
