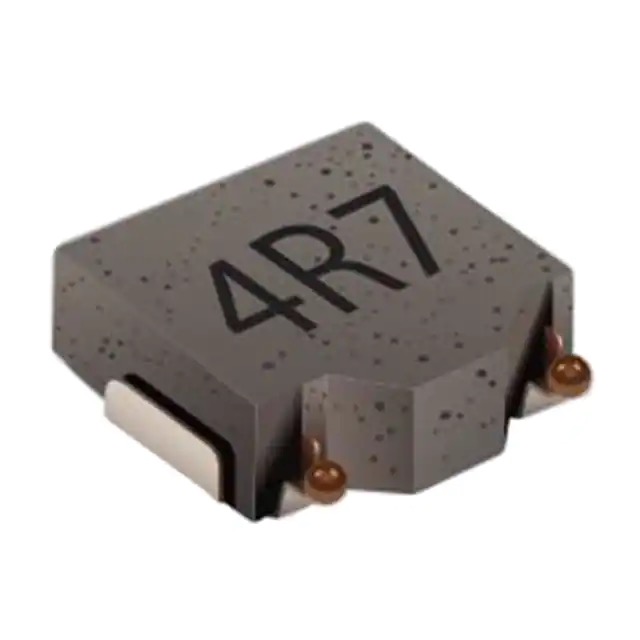

SRP0415-4R7K
Bourns Inc.
| Quantity: | |
|---|---|
Description
FIXED IND 4.7UH 2.8A 100MOHM SMD
Detailed Description
| Mfr Part # | SRP0415-4R7K |
| Mfr | Bourns Inc. |
| Description | FIXED IND 4.7UH 2.8A 100MOHM SMD |
| Stock | 2,775 |
| Price | 1.08 |
| @ qty | 0 |
| Min Qty | 1 |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Series | SRP0415 |
| Part Status | Active |
| Type | - |
| Material - Core | Metal |
| Inductance | 4.7 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 2.8 A |
| Current - Saturation (Isat) | 4.1A |
| DC Resistance (DCR) | 100mOhm Max |
| Q @ Freq | 39 @ 7.96MHz |
| Frequency - Self Resonant | 25MHz |
| Size / Dimension | 0.173" L x 0.161" W (4.40mm x 4.10mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
SRP0415 Series - Shielded Power Inductors Features
*Shielded construction
*Metal alloy powder core
*High saturation current
*Low buzz noise
*Flat wire
*RoHS compliant* and halogen free**
Electrical Specifications @ 25 °C
