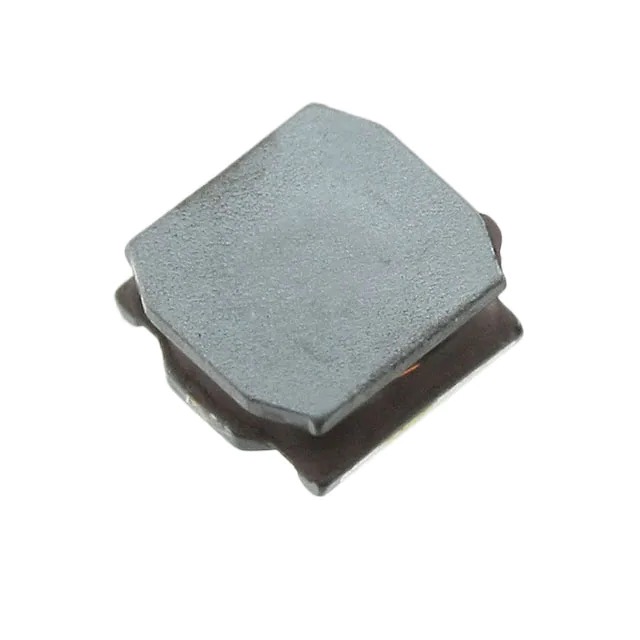

FIXED IND 3.3UH 1.77A 65MOHM SMD
Detailed Description
| Mfr Part # | LQH44PN3R3MP0L |
| Mfr | Murata Electronics |
| Description | FIXED IND 3.3UH 1.77A 65MOHM SMD |
| Stock | 2,904 |
| Price | 0.47 |
| @ qty | 0 |
| Min Qty | 1 |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Series | LQH44 |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.77 A |
| Current - Saturation (Isat) | 2.1A |
| DC Resistance (DCR) | 65mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 50MHz |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
