22 µH Wirewound Inductor SPM12565VT-220M-D TDK
Home » Products » Inductors » Fixed Inductors » 22 µH Wirewound Inductor SPM12565VT-220M-D TDK

Product Category

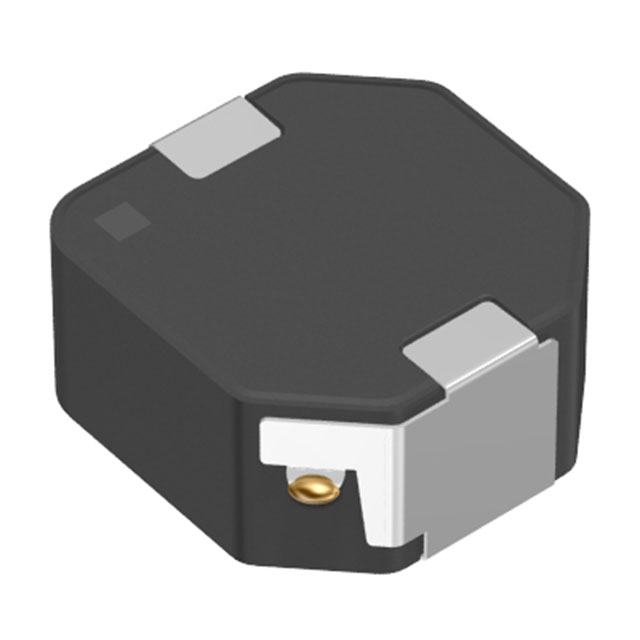

22 µH Wirewound Inductor SPM12565VT-220M-D TDK

  • SPM12565VT-220M-D

  • TDK

Availability:
Quantity:

Description

FIXED IND 22UH 6.9A 31 MOHM SMD


Detailed Description


Mfr Part #SPM12565VT-220M-D
MfrTDK Corporation
DescriptionFIXED IND 22UH 6.9A 31 MOHM SMD
Stock743
Price5.28
@ qty0
Min Qty1
 PackageTape & Reel (TR),Cut Tape (CT)
SeriesSPM-VT-D
Part StatusActive
TypeWirewound
Material - CoreMetal Composite
Inductance22 µH
Tolerance±20%
Current Rating (Amps)6.9 A
Current - Saturation (Isat)10.4A
DC Resistance (DCR)31mOhm
Q @ Freq-
Inductance Frequency - Test100 kHz
Package / CaseNonstandard


SPM12565VT-D type FEATURES :

Metal composite type wound inductor for power circuits using a metallic magnetic material.

Compared to ferrite wound type inductors, low Rdc and miniaturization can be realized due to superior DC superimposition characteristics of metallic magnetic materials.

Vibration resistance of 30 G due to vibration resistance structure Operating temperature range: –55 to +155°C (including self-temperature rise) Compliant with AEC-Q200


Automotive-related equipment (LED, ECM, ADAS, BCM etc.)

Introducing the SPM12565VT-D, a cutting-edge application designed for automotive-related equipment. With its exceptional functionality and advanced features, this product is set to revolutionize the automotive industry.

Built with precision and expertise, the SPM12565VT-D is the perfect solution for various automotive applications. Whether it's LED lighting, ECM (Engine Control Module), ADAS (Advanced Driver Assistance Systems), or BCM (Body Control Module), this versatile equipment caters to all your automotive needs.

Experience unparalleled performance with this state-of-the-art product. The SPM12565VT-D boasts a wide range of features that ensure optimal functionality and reliability. Its advanced LED technology guarantees enhanced visibility and safety on the road, while the ECM efficiently controls and monitors the engine's performance.


Download

spm12565vt-d_en.pdf
