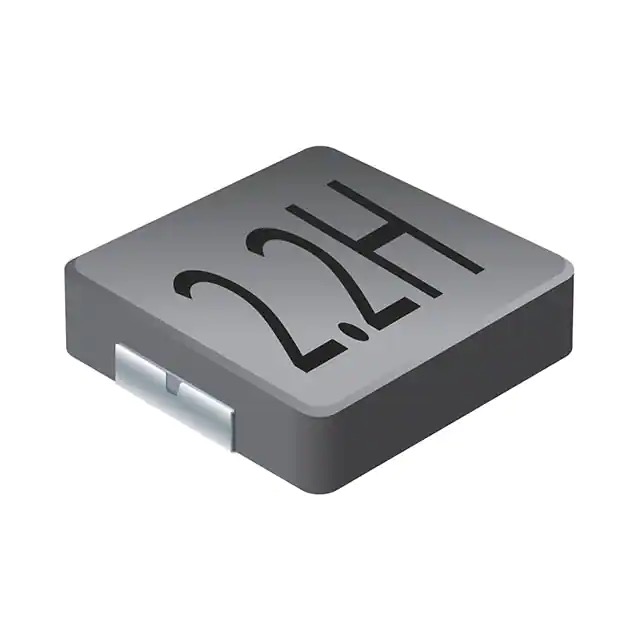

SRP3020C-2R2M
Bourns Inc.
| Quantity: | |
|---|---|
Description
FIXED IND 2.2UH 3.5A 75 MOHM SMD
Detailed Description
| Mfr Part # | SRP3020C-2R2M |
| Mfr | Bourns Inc. |
| Description | FIXED IND 2.2UH 3.5A 75 MOHM SMD |
| Stock | 2,226 |
| Price | 1.04 |
| @ qty | 0 |
| Min Qty | 1 |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Series | SRP3020C |
| Part Status | Active |
| Type | - |
| Material - Core | Metal |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.5 A |
| Current - Saturation (Isat) | 3.7A |
| DC Resistance (DCR) | 75mOhm Max |
| Q @ Freq | 10 @ 100kHz |
| Frequency - Self Resonant | 75MHz |
| Size / Dimension | 0.138" L x 0.126" W (3.50mm x 3.20mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
SRP3020C Series Features
*Shielded construction
*Metal alloy powder core
*High saturation current
*Low buzz noise
*Inductance range 0.1 to 10 µH
*RoHS compliant* and halogen free**
General Specifications
Operating Temperature：40 °C to +125 °C
